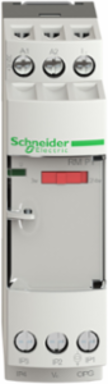

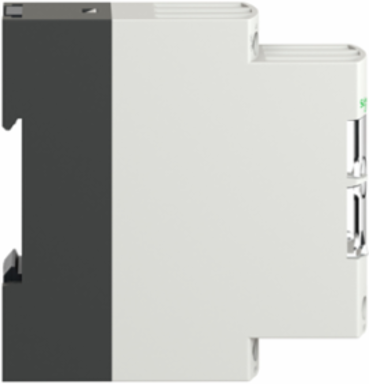

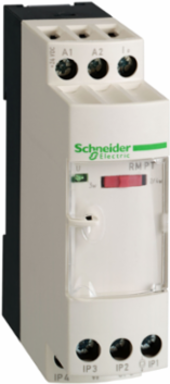

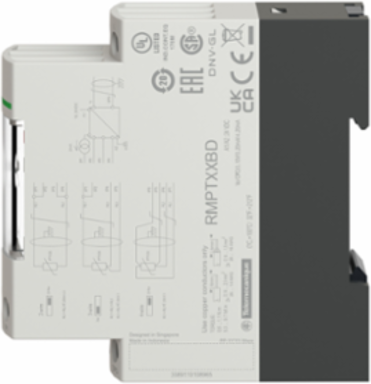

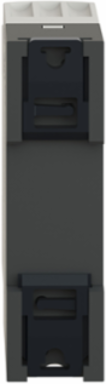

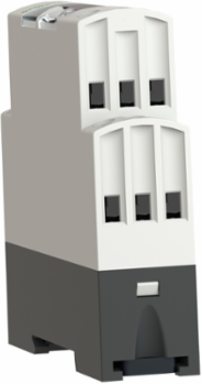

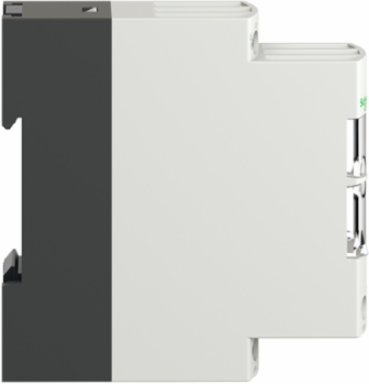

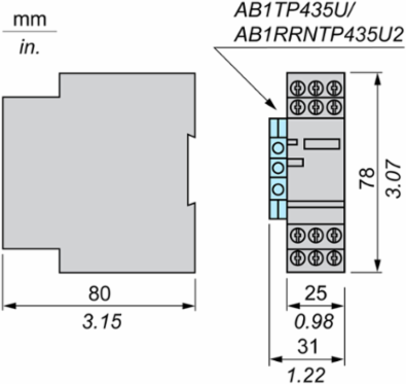

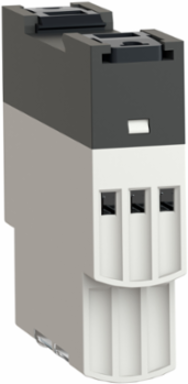

Schneider Electric RMPT30BD Universal Pt100 Probe Converter, Harmony Analog, 0-100°C, 24V DC
Schneider Electric RMPT30BD Universal Pt100 Probe Converter, Harmony Analog, 0-100°C, 24V DC
- MPN: RMPT30BD
- PPN: SCH-RMPT30BD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$216.38/ EA
Description
This temperature transmitter is part of the range of Harmony Analog interfaces. It is designed to convert signal of Pt100 probe into standard electrical signal which is compatible with automation platforms, controllers. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. The cables used to connect the converters to process equipment (PLCs) are standard cables, which are more cost effective than extension cables or compensation cables suitable for low level signals for Pt100 probes or thermocouples. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- GL || UL || CSA
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP20 terminal block) || IP50 housing)
- Pollution Degree
- 2 IEC 60664-1
- Fire Resistance
- 850 °C IEC 60695-2-1 || 850 °C UL
StandardsDIN 43760 || EN/IEC 60751 || EN/IEC 60947-1 || EN/IEC 60584-1
Electromagnetic Compatibilityelectrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Vibration Resistance5 gn 10-100 Hz)IEC 60068-2-6
Disturbance Radiated/ConductedCISPR 22 group 1 - class B || CISPR 11
Ambient Air Temperature For Storage-40-85 °C
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1607005EN
Complementary
- [Us] Rated Supply Voltage
- 24 V DC non isolated +/- 20 %
- Safety Reliability Data
- MTTFd = 32.9 years || B10d = 30437
- Clamping Connection Capacity
- 1 x 2.5 mm² || 2 x 1.5 mm²
- Marking
- CE
- Net Weight
- 0.12 kg
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
- Local Signalling
- power ON LED green)
- Protection Type
- reverse polarity protection on power supply || short-circuit protection on output || overvoltage protection on output (+/- 30 V) || reverse polarity protection on output
- Analogue Output Current
- -30-0 mA no input or input wire broken || 22-30 mA no input or input wire broken
Current Consumption<= 40 mA voltage output || <= 60 mA current output
Measurement Error+/- 0.5 % of full scale 3 or 4 wires)20 °C || +/- 1 % of full scale 2 wires)20 °C || +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)
[Ui] Rated Insulation Voltage2000 V
Analogue Output Voltage-15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
Fixing Modeclip-on (35 mm symmetrical DIN rail) || fixed (mounting plate)
Maximum Wiring Resistance0.2 Ohm 2 wires
Temperature Coefficient150 ppm/°C
Tightening Torque0.6-1.1 N.m
Repeat Accuracy+/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
Specifications
- Range Of Product
- Harmony Analog
- Product Or Component Type
- converter for Universal Pt100 probes
Analogue Output Typecurrent 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
Analogue Input Typetemperature probe 0...100 °C/32..212 °F Pt 100 2, 3 or 4 wires
