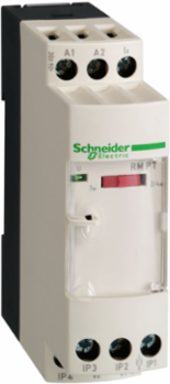

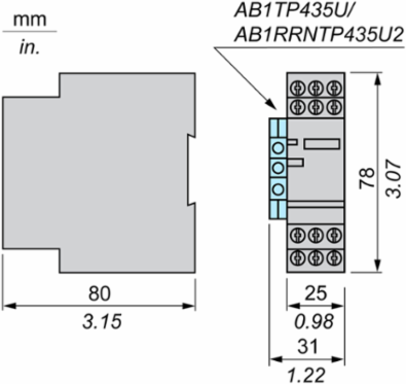

Schneider Electric RMPT10BD Harmony Analog Pt100 Temperature Converter -40 to 40 °C, 0-20 mA Output
- MPN: RMPT10BD
- PPN: SCH-RMPT10BD
CAD
$216.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Harmony Analog Pt100 Temperature Converter -40 to 40 °C, 0-20 mA Output
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Analog
- Product Or Component Type
- converter for Universal Pt100 probes
Analogue Output Typecurrent 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
Analogue Input Typetemperature probe - 40...40 °C/- 40...104 °F Pt 100 2, 3 or 4 wires
Complementary
- [Us] Rated Supply Voltage
- 24 V DC non isolated +/- 20 %
- Safety Reliability Data
- B10d = 30437 || MTTFd = 32.9 years
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
- Maximum Wiring Resistance
- 0.2 Ohm 2 wires
- Temperature Coefficient
- 150 ppm/°C
- [Ui] Rated Insulation Voltage
- 2000 V
- Analogue Output Voltage
- -15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
- Fixing Mode
- by screws (mounting plate) || clip-on (35 mm symmetrical DIN rail)
- Analogue Output Current
- -30-0 mA no input or input wire broken || 22-30 mA no input or input wire broken
Current Consumption<= 40 mA voltage output || <= 60 mA current output
Measurement Error+/- 0.5 % of full scale 3 or 4 wires)20 °C || +/- 1 % of full scale 2 wires)20 °C || +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)
Clamping Connection Capacity1 x 2.5 mm² || 2 x 1.5 mm²
Local Signallingpower ON LED green)
Protection Typeovervoltage protection on output (+/- 30 V) || reverse polarity protection on output || short-circuit protection on output || reverse polarity protection on power supply
MarkingCE
Net Weight0.12 kg
Tightening Torque0.6-1.1 N.m
Repeat Accuracy+/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
Environment
- Disturbance Radiated/Conducted
- CISPR 11 || CISPR 22 group 1 - class B
- Pollution Degree
- 2 IEC 60664-1
- Standards
- DIN 43760 || EN/IEC 60584-1 || EN/IEC 60947-1 || EN/IEC 60751
- Electromagnetic Compatibility
- electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
Product CertificationsUL || GL || CSA
Ambient Air Temperature For Storage-40-85 °C
Ambient Air Temperature For Operation0-50 °C mounting side by side || 0-60 °C 2 cm spacing
Fire Resistance850 °C IEC 60695-2-1 || 850 °C UL
Vibration Resistance5 gn 10-100 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP20 terminal block) || IP50 housing)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1607005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
