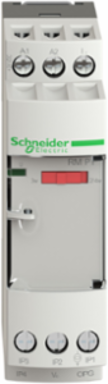

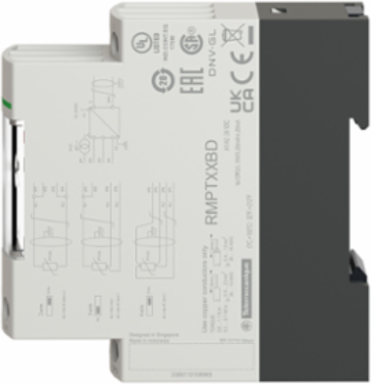

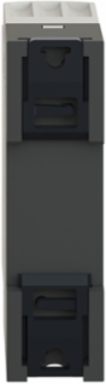

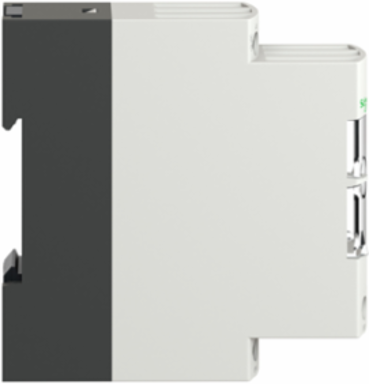

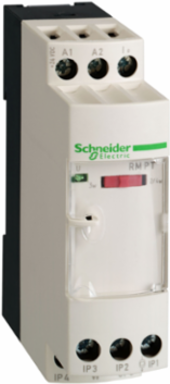

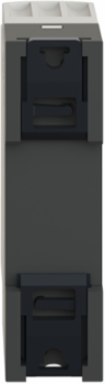

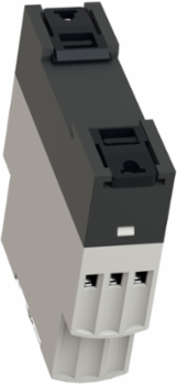

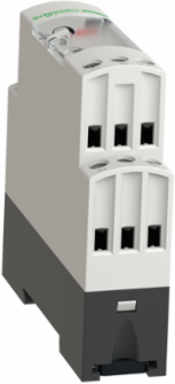

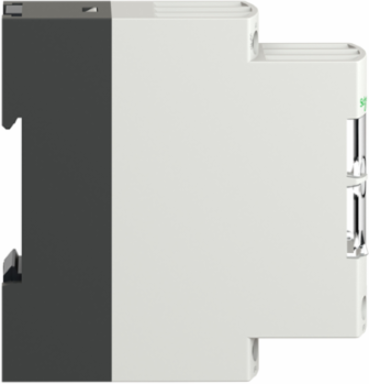

Schneider Electric RMPT53BD Harmony Analog Temperature Transmitter, 0-250 C, IP20/IP50, 4-20 mA
- MPN: RMPT53BD
- PPN: SCH-RMPT53BD
CAD
$176.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony Analog temperature transmitter provides a versatile interface for your machines. It has a reverse polarity protection, a short-circuit protection and an overvoltage protection. 0 It is dust resistant, impact resistant and vibration resistant, thanks to its IP20 and IP50, making it ideal for operations in harsh environments. The product is a converter for Universal Pt100 probes with 0-250 °C/32-482 °F analogue input type. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output<= 40 mA voltage output, <= 40 mA voltage output, <= 60 mA current output, <= 60 mA current output
- Fire Resistance
- 850 °C IEC 60695-2-1, 850 °C UL
- Measurement Error
- +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C, +/- 1 % of full scale 2 wires)20 °C, +/- 1 % of full scale 2 wires)20 °C+/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference), +/- 1 % of full scale 2 wires)20 °C, +/- 1 % of full scale 2 wires)20 °C
- Repeat Accuracy
- +/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C+/- 0.2 % full scale 20 °C, +/- 0.2 % full scale 20 °C, +/- 0.6 % full scale 60 °C, +/- 0.6 % full scale 60 °C
- Safety Reliability Data
- MTTFd = 43.9 years, B10d = 40564
- Disturbance Radiated/Conducted
- CISPR 22 group 1 - class B, CISPR 11
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Local Signalling
- LED (green) for power ON
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Analog
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Temperature Coefficient
- 150 ppm/°C
- Vibration Resistance
- 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
- [Ui] Rated Insulation Voltage
- 2000 V
- Package Weight(Lbs)
- 101.900 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Fixing Modeclip-on (35 mm symmetrical DIN rail), fixed (mounting plate)
Protection Typeshort-circuit protection on output, reverse polarity protection on power supply, overvoltage protection on output (+/- 30 V), reverse polarity protection on output
Resistance To Fast Transients1 kV IEC 61000-4-4 on input-output), 2 kV IEC 61000-4-4 on power supply)
Certificate AgencyUL, CSA, GL
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
MarkingCE
Product Or Component Typeconverter for Optimum Pt100 probes
ReturnabilityYes
Sustainable PackagingYes
Tightening Torque0.6-1.1 N.m
Pep CodeENVPEP1607005EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-50 °C mounting side by side, 0-60 °C 2 cm spacing
- Ip Degree Of Protection
- IP20 terminal block), IP50 housing)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1409020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1607005EN
General Attributes
- Product Or Component Type
- converter for Optimum Pt100 probes
Range Of ProductHarmony Analog
ETIM
- ETIM 8
- EC002081
ETIM 9EC002081
Output Attributes
- Analogue Output Current
- -30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken-30-0 mA no input or input wire broken, -30-0 mA no input or input wire broken, 22-30 mA no input or input wire broken
- Analogue Output Voltage
- -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, -15...-11 V no input or input wire broken, 11...15 V no input or input wire broken
Analogue Output Typecurrent 4...20 mA, voltage 0...10 V
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV 1.2/50 µs IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Type
- RTD 0...250 °C/32...482 °F Pt 100 2, 3 or 4 wires
