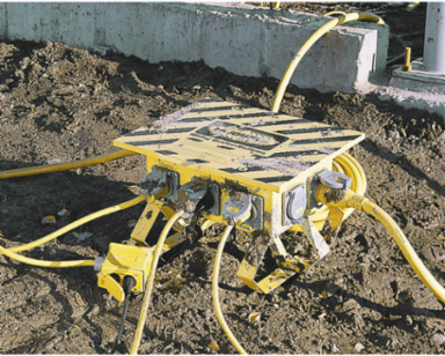

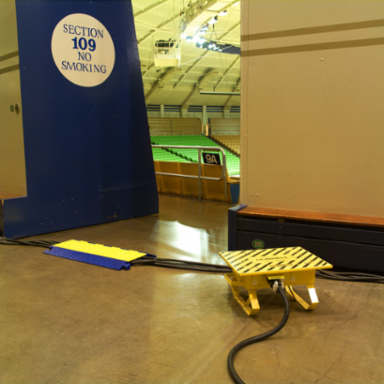

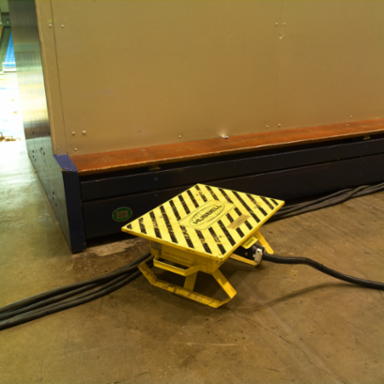

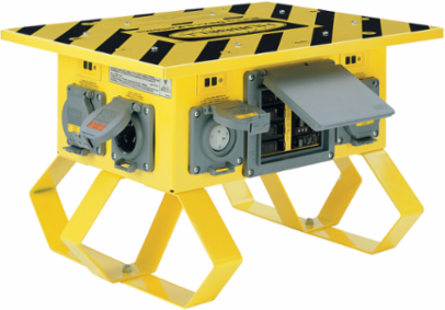

Hubbell Wiring Device-Kellems SBTL1A Spider Portable Power Unit, 6) 20A 125V & 1) 50A 125/250V Receptacles, Yellow
- MPN: SBTL1A
- UPC: 783585370880
- PPN: HBL-SBTL1A
- UNSPSC: 39121406
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Temporary Power Products, Spider Portable Power, Complete Unit, Locking Style, With 6) 20A 125V Receptacles- 1) 30A 250V Locking Receptacle- 1) 50A 125/250V Inlet and Outlet, Yellow
Features
- Individual GFCI modules
- TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
- Standard stab termination circuit breakers with gasketed lift cover
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 19.500 in |
| Performance | Environment - Moisture Resistance - Indoor and outdoor wet and dry locations |
| Application | Heavy Duty Portable |
| Environmental Conditions | Indoor and Outdoor |
| Number of Poles | 3-Pole |
| Phase | Single Phase |
| Standard | UL 1640 cUL and CSA, UL 943 |
| Voltage Rating | 120/240 VAC |
| Wire Size | #10 AWG Min #6 AWG Max |
| Weight | 50 lb. |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Entertainment Product Solution Guide |
| Display Size | Standard Sized Product |
| Number Of Poles | 3-Pole |
| Class Code | A20 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | SBTL1;SGFI1PA;SGFI1PNA;SGFI1PNB;SGFI1PNBA |
| Material - Mounting Hardware | Non-Mounted, Portable |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585370880 |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 50 A |
|---|---|
| Industry Standard(s) | UL 1640 cUL and CSA, UL 943 |
| Amperage Rating | 50 A |
| Color | Yellow |
| NEMA Rating | 7) L5-20R, 1) 50A Non-NEMA In/Out |
| Number of Wires | 4-Wire Grounding |
| Special Features | Standard Product |
| Type | 7-20A, 125V Locking Receptacles, 1-50A 125/250V Locking Inlet, 1-50A 125/250V Locking Outlet |
| Wattage | 12500 W |
| Voltage Rating Description | 120/240 VAC |
| Engineering Drawing 1 Display Text | SBTL1A AutoCAD Drawing |
| General Literature Asset 2 Display Text | Education Application Guide |
| Connectivity | Pre-Wired |
| Nema Rating | 7) L5-20R, 1) 50A Non-NEMA In/Out |
| Number Of Wires | 4-Wire Grounding |
| Description - Invoice | SPIDER BOX , 50A. TWISTLOCK |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Sub Class Code | A20A270 |
| Current Rating | 50 A |
| Series | Spider II |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
