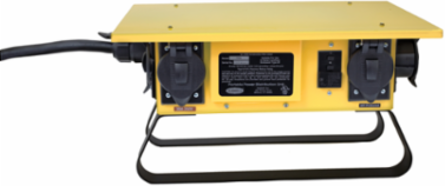

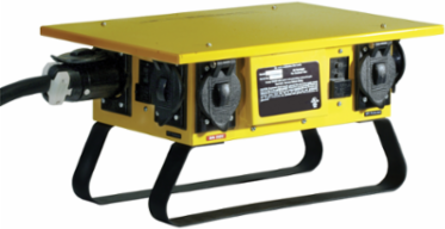

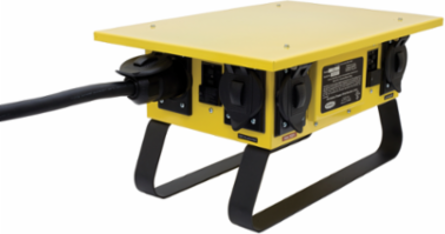

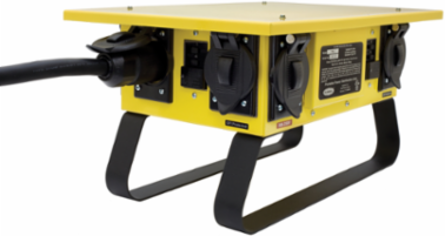

Hubbell Wiring Device-Kellems TPDL Temporary Power Distribution Box 50A 120/240V, Yellow
- MPN: TPDL
- UPC: 783585093840
- PPN: HBL-TPDL
- UNSPSC: 39121406
CAD
$2251.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Temporary Power Distribution Box, Complete Unit, Locking Style, 50A 125/250V
Features
- Save space in the warehouse and on the truck with nesting leg design
- Durable Hi Visibility Yellow Powder Coated Steel Construction
- Individual GFCI modules
- Standard Product
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 15.600 in |
| Amperage Rating | 50 A |
| Color | Yellow |
| NEMA Rating | Non-NEMA |
| Number of Wires | 3-Wire Grounding |
| Special Features | Standard Product |
| Type | 50A 125/250V, Yellow |
| Wattage | 12500 W |
| Weight | 32.45 lb. |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Entertainment Product Solution Guide |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Class Code | A20 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A20A270 |
| Current Rating | 50 A |
| Series | Distribution Box |
| BOX SIZE | 12.200x22.200x15.600 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585093840 |
| Case Weight | 32.450 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 36.600 in |
| Pallet Weight | 486.750 lb. |
| NAICS Code | 335931A107 |
| Current / Amperage Rating | 50 A |
|---|---|
| Industry Standard(s) | UL 1640, UL 943 |
| Application | Temporary Power Distribution |
| Environmental Conditions | Indoor/Outdoor |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Standard | UL 1640, UL 943 |
| Voltage Rating | 120/240 VAC |
| Voltage Rating Description | 120/240 VAC |
| Engineering Drawing 1 Display Text | TPDL AutoCAD Drawing |
| General Literature Asset 2 Display Text | Education Application Guide |
| Connectivity | Plug Together |
| Nema Rating | Non-NEMA |
| Number Of Wires | 3-Wire Grounding |
| Description - Invoice | DISTRIB BOX, 50 AMP LOCKING |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Plug Together |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 32.450 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585093849 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
