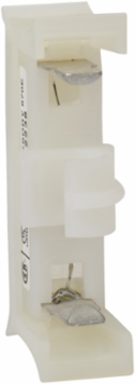

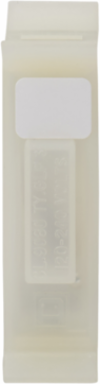

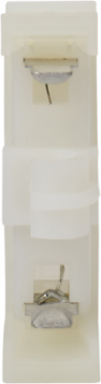

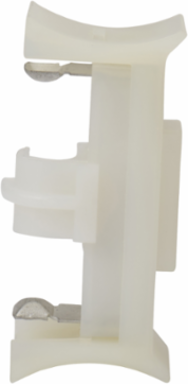

Square D 9080GLP3 Linergy Blown Fuse Indicator, 240V, 0.64 Inch Width, Set of 10
- MPN: 9080GLP3
- UPC: 785901489672
- PPN: SCH-9080GLP3
- UNSPSC: 39121410
CAD
$27.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This blown fuse indicator is designed to work with the 9080GF6 sectional fuse holder terminal block to easily identify a fuse that has blown. This indicator combines a blown fuse indicator and a fuse puller into one device. When a fuse blows this indicator will illuminate. This blown fuse indicator can be used with circuit voltages from 120 to 240 volts. The blown fuse indicator will replace the 9080GH63 fuse puller that is supplied with the 9080GF6 fuse holder. This blown fuse indicator is UL listed and CSA certified.
Features
- Blown fuse indicator for 240 volts
- Designed specifically for 9080G terminal blocks
- Molded Nylon in off white color
- Set of 10 in Package
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 2.4 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | nylon |
| Product Or Component Type | Blown Fuse Indicator |
| Range Of Product | 9080G |
| Sustainable Packaging | No |
| Width Nominal | 0.64 in |
| Customs Code | 8536904000 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-09-04 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 10 |
| Returnability | Yes |
| Height Nominal | 1.17 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | Blown Fuse Indicator |
|---|
| Range Of Product | 9080G |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
