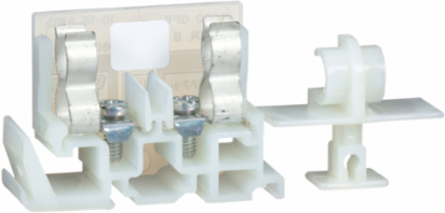

Square D 9080GF6 Linergy Terminal Block 30A 600V 2.33 Inch Height Natural Color
- MPN: 9080GF6
- UPC: 785901155034
- PPN: SCH-9080GF6
CAD
$27.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth0.75 in
Physical Attributes
- Color
- natural
Complementary Attributes
- Line Rated Current
- 30-30 A UL, 30-30 A CSA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 35 mm DIN rail, 9080GH track
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1918
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 18 AWG...10 AWG copper
- Energy Efficiency Optimized
- False
- Number Of Terminal Blocks
- 16 per foot
- Product Or Component Type
- terminal block
- Quantity Per Set
- set of 10
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 2.19 in
- Connections - Terminals
- clamp terminal zinc plated steel 18-20 lbf.in : 18 AWG...10 AWG copper)
- Package Weight(Lbs)
- 272.155 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCSA file 62144 class 6228 01, CE, UL recognized E60616 CCN XCFR2
Local Publishable Date2026-06-27
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionpressure wire clamp
Localisation On Devicefusible
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typefingersafe DIN 57470
Range Of Product9080G
Sustainable PackagingNo

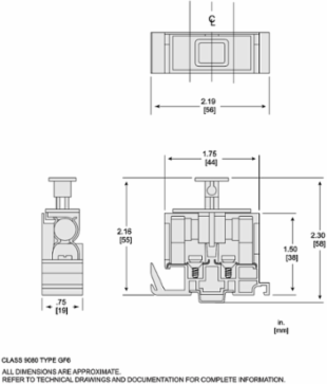

Height Nominal2.33 in
[Ue] Rated Operational Voltage600 V AC/DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- GF6B
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-40-221 °F, -40-221 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
