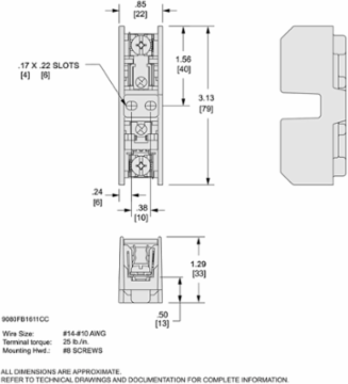

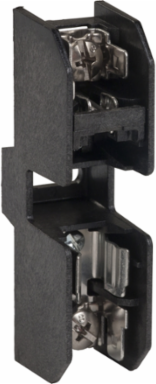

Square D 9080FB1611CC Linergy Terminal Block Fuse Holder, 30A, 600V, 1 Pole, Thermoplastic
Square D 9080FB1611CC Linergy Terminal Block Fuse Holder, 30A, 600V, 1 Pole, Thermoplastic
- MPN: 9080FB1611CC
- UPC: 785901097198
- PPN: SCH-9080FB1611CC
- UNSPSC: 39121624
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$17.35/ EA
Description
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 12/3R dust tight and drip tight enclosure is used to protect this starter. Enclosure is 12.75 inches tall, 6.38 inches wide and 8.53 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Features
- This one pole fuse holder will accept class CC fuses
- The rating of the fuse can be up to 30 Amps with a 600 V maximum rating
- The fuse holder base is made of high impact thermoplastic
- This fuse holder is UL listed and CSA certified
Specifications
Physical Attributes
- Fuse Size
- 0.4063 x 1.5 in
Wire Stripping Length0.4375 in
Conformance Attributes
- Product Certifications
- UL recognized E40747 CCN IZLT2, CSA file 70360 class 6225 01, CE
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Ue Rated Operational Voltage2
- <= 600 V AC/DC, <= 600 V AC/DC
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- AWG Gauge
- AWG 14...AWG 10 copper or aluminium
- Energy Efficiency Optimized
- False
- Material
- thermoplastic: block
- Package Weight Lbs
- 40.823 g
- Product Or Component Type
- fuse holder
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections Terminals
- screw terminals 25 lbf.in AWG 14...AWG 10 copper
- Stocking Flag
- N
- Global Commercial Status
- Commercialised
- Ics Rated Service Breaking Capacity5
- 200 kA UL 512
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Ue Rated Operational Voltage5<= 600 V AC/DC, <= 600 V AC/DC
Local Publishable Date2025-11-13
Device TypeLV equipment - LV fuse - disconnector
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Electrical Connectionpressure wire clamp
Fuse TypeCC
Mounting Supportsurface mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9080FB
Sustainable PackagingNo
Ics Rated Service Breaking Capacity2200 kA UL 512
Medium DescTerminal block, Linergy, fuse holder, Class CC, 30A, 600V, 1 pole
Product Kit IdentifierN
Connections Terminals3screw terminals 25 lbf.in AWG 14...AWG 10 copper
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-257 °F
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant , Compliant
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- fuse holder
Range Of Product9080FB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 1.29 in
