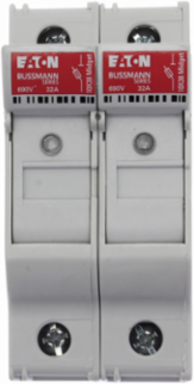

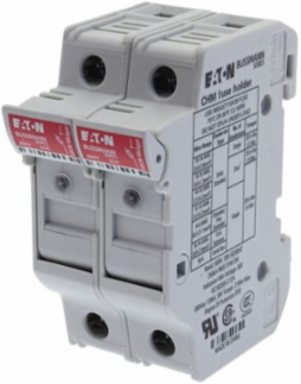

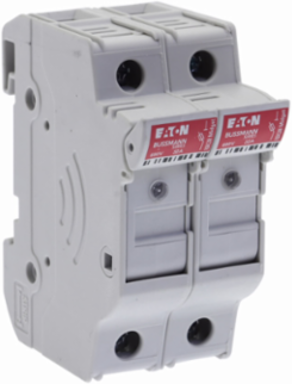

Bussmann CHM2DIU Eaton Bussmann series CHM modular fuse holder, 600V (UL), 690V (IEC), 30A (UL), 32A (IEC), Modular fuse holder, Two-pole - CHM2DIU

Description

Features

• Rated for up to 30 Amps at 600V, the CHM2DIU is compatible with a wide range of fast-acting or time-delay 10x38mm (Midget) fuses. Whether you are protecting supplemental branch circuits, control transformers, or solar strings, this UL Recognized and CSA Certified component provides the high-interrupting capacity needed to prevent catastrophic equipment damage from short circuits or overloads.
• Featuring a compact, 2-pole modular footprint, this 30A holder snaps directly onto any standard 35mm DIN rail to optimize high-density layouts. The interlocking design allows for seamless integration into complex motor control centers or solar combiner boxes, reducing installation labor and saving valuable enclosure real estate for industrial engineers and panel builders.
• Equipped with integrated neon lamps, this "I" version provides immediate visual status of the fuse health by illuminating the specific pole upon a fault event. This diagnostic capability eliminates the need for manual probing with a multimeter, allowing maintenance technicians to quickly isolate failures and restore power to critical PLC or control circuits with minimal downtime.

Documentation & Downloads

Specifications
