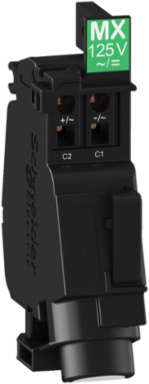

Schneider Electric GV4AS137 Voltage release, TeSys GV4, MX coil, 110 to 130VAC 50/60Hz, 125VDC
- MPN: GV4AS137
- PPN: SCH-GV4AS137
CAD
$224.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV electrical trip unit, MX shunt trip, 110-130V AC 50Hz/60Hz or 125V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Poland, Sweden
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Impulse Duration
- >= 20 ms, >= 20 ms
- Maximum Inrush Power In W
- 4 W
Maximum Inrush Power In Va6 VA
Important Information Attributes
- Operating Time
- < 50 ms, < 50 ms
- Carbon Footprint Of The Distribution Phase [A4]
- 0.00836923076923077, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.034432, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.00034253
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311043EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1824
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- control
- Energy Efficiency Optimized
- False
- Maximum Inrush Power In W
- 4 W
- Mounting Mode
- internal mounting
- Product Or Component Type
- voltage release
- Range
- TeSys
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 33
- [Ui] Rated Insulation Voltage
- 130 V IEC 60947-1
- Maximum Hold-in Power Consumption In Va
- 10 VA
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 64.000 g
- Warranty (In Months)
- 18
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -0.3824
- Customs Code
- 8536308000
Threshold Tripping Voltage< 0.7 Un possible opening, < 0.7 Un possible opening, 0.7...1.1 Un failsafe opening, < 0.7 Un possible opening, < 0.7 Un possible opening
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.09759999999999999
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.656123076923077
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Device Short NameMX
Maximum Inrush Power In Va6 VA
Mechanical Durability20000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingYes
Voltage Release Typeshunt trip release
Pep CodeENVPEP2311043EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage110...130 V AC 50/60 Hz125 V DC
Connections - Terminalsspring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum Hold-in Power Consumption In W1 W
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]0.3584
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]0.3584
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311043EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1.7968668376923076
Environmental DisclosureENVPEP2311043EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311043EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- voltage release
ETIM
- ETIM 8
- EC001023
ETIM 9EC001023
