Schneider Electric GV4AS027 Voltage release, TeSys GV4, MX coil coil, 24VAC/DC

MPN: GV4AS027
PPN: SCH-GV4AS027

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$224.20/ EA

Qty:

Loading add to cart quantity...

Description

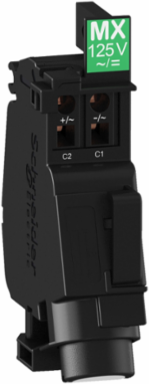

TeSys GV electrical trip unit, MX shunt trip, 24V AC 50Hz/60Hz or 24V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Specifications

Physical Attributes

Wire Stripping Length: 8 mm

Complementary Attributes

Impulse Duration: >= 20 ms, >= 20 ms

Maximum Hold In Power Consumption In Va: 10 VA

Maximum Inrush Power In Va: 6 VA

Ui Rated Insulation Voltage: 24 V IEC 60947-1

Uc Control Circuit Voltage24 V AC 50/60 Hz, 24 V DC

Maximum Hold In Power Consumption In W1 W

Maximum Inrush Power In W4 W

Important Information Attributes

Operating Time: < 50 ms, < 50 ms

Carbon Footprint Of The Distribution Phase A4: 0.00836923076923077, 0 kg CO2 eq.

Carbon Footprint Of The Installation Phase A5: 0.034432, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 0 kg CO2 eq., 0.00034253

Local Publishable Date: 2026-01-07

Stocking Flag: Y

Serviceability: No

Field Service Division: PPIBS

Weee Scope: In

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI2311043EN

Reach Full Compliance Status Id: CONTAINS_SVHC

Rohs Eur In Scope: Yes

Rohs Eur Conformity Date: 1824

China Rohs In Scope: No

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Device Application: control

Energy Efficiency Optimized: False

Maximum Inrush Power In Va: 6 VA

Mechanical Durability: 20000 cycles

Product Availability: Non-Stock - Not normally stocked in distribution facility

Quantity Per Set: set of 1

Returnability: No

Sustainable Packaging: Yes

Voltage Release Type: shunt trip release

Connections Terminals: spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end

Pep Code: ENVPEP2311043EN

Pep Verification Date: 2023-12-03

Psr Version: PSR-0005-ed2-2016 03 29

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime, In Y: 10

Energy Model - Installation [A5]: Electricity Mix; Production mix; Low voltage; UE-27

Energy Model - End Of Life [C1-c4]: Electricity Mix; Production mix; Low voltage; UE-27

Offer Owner Code: 190788

Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]: 0.3584

Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]: 0.3584

Threshold Tripping Voltage< 0.7 Un possible opening, < 0.7 Un possible opening0.7...1.1 Un failsafe opening, < 0.7 Un possible opening, < 0.7 Un possible opening

Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.09759999999999999

Carbon Footprint Of The Manufacturing Phase A1 To A32 kg CO2 eq., 1.656123076923077

Local Data StatusPublishable

Return IndicatorN

Stock Policy2

TraceabilityNo

Weee ApplicabilityFinished product

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold

Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant By Exemption

Rohs Eur Full Compliance StatusCompliant By Exemption

China Rohs Label7

Without Single Use PlasticYes

Product Kit IdentifierN

Device Short NameMX

Halogen Free StatusProduct contains halogen above thresholds

Maximum Inrush Power In W4 W

Mounting Modeinternal mounting

Product Or Component Typevoltage release

RangeTeSys

Software Versionv5.9.4

Total Lifecycle Carbon Footprint2 kg CO2 eq.

Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty In Months18

Database Version2022-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

Functional-unit DescriptionTo trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.

Functional-unit UnitUnit

Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR

Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27

Recyclability Potential, In %33

Pn1

Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.3824

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Halogene Performance: Product contains halogen above thresholds

Mercury Free: Yes

Circularity Profile: ENVEOLI2311043EN

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2023-12-03

Psr Version: PSR-0005-ed2-2016 03 29

Take BackNo

Recycled Metal Content At Cr Level0 %

Carbon Footprint1.7968668376923076

Environmental DisclosureENVPEP2311043EN

Halogen Content PerformanceProduct contains halogen above thresholds

Packaging Without Single Use PlasticYes

Pep CodeENVPEP2311043EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type: voltage release

ETIM

ETIM 8: EC001023

ETIM 9EC001023

Specifications

Country of Origin: Brazil, France
