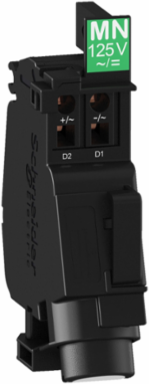

Schneider Electric GV4AU137 Undervoltage release, TeSys GV4, MN coil, 110 to 130VAC 50/60Hz, 125VDC
- MPN: GV4AU137
- PPN: SCH-GV4AU137
CAD
$224.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV electrical trip unit, MN undervoltage release, 110-130V AC 50/60Hz and 125V DC, for motor circuit breakers GV4. Opening of the the circuit breaker is ensured when the control voltage drops below 0.35 Uc, and possible between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Poland, Sweden
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Maximum Inrush Power In Va
- 7 VA
Maximum Inrush Power In W2 W
Important Information Attributes
- Operating Time
- < 50 ms, < 50 ms
- Carbon Footprint Of The Distribution Phase [A4]
- 0.007976766666666666, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02707383333333333, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 251 kg CO2 eq., 251.33
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- MN
- Maximum Inrush Power In Va
- 7 VA
- Mechanical Durability
- 20000 cycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- Yes
- Voltage Release Type
- undervoltage release
- Pep Code
- ENVPEP2311042EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 32
- [Ui] Rated Insulation Voltage
- 130 V IEC 60947-1
- Maximum Hold-in Power Consumption In Va
- 7 VA
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 61.000 g
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 251
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 6403.1
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 5.0007
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 36.161
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 7632.7
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 6403.1
- Water Use (M3 Eq) Operational Energy Use [B6]
- 8.8931
Threshold Tripping Voltage< 0.35 Un failsafe opening, < 0.35 Un failsafe opening< 0.35 Un failsafe opening, < 0.35 Un failsafe opening0.35...0.7 Un possible opening0.85...1.1 Un enabled closing
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.10177680555555556
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.69578125
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Use Carbon Footprint251.33
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311042EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1824
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationcontrol
Energy Efficiency OptimizedFalse
Maximum Inrush Power In W2 W
Mounting Modeinternal mounting
Product Or Component Typevoltage release
RangeTeSys
Software Versionv5.9.4
Total Lifecycle Carbon Footprint252 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo trip the circuit breaker when the control voltage drops below 35% of its rated voltage.& 10Between 35% and 70% of the rated voltage opening is possible but not ensured.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh613.2
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Uc] Control Circuit Voltage110...130 V AC 50/60 Hz125 V DC
Connections - Terminalsspring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum Hold-in Power Consumption In W2 W
Nbr. Of Units In Pkg.1
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]1.4341
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]251.33
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2706.6
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]373.69
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]2.4482
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1229.6
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1229.6
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311042EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint252.16260865555554
Environmental DisclosureENVPEP2311042EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311042EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- voltage release
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
