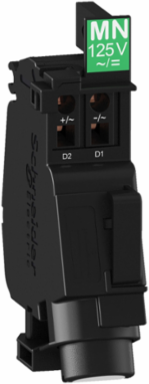

Schneider Electric GV4AU027 Undervoltage release, TeSys GV4, MN coil, 24VAC/DC
- MPN: GV4AU027
- PPN: SCH-GV4AU027
CAD
$224.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV electrical trip unit, MN undervoltage release, 24V AC 50/60Hz and 24V DC, for motor circuit breakers GV4. Opening of the the circuit breaker is ensured when the control voltage drops below 0.35 Uc, and possible between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Maximum Inrush Power In Va
- 7 VA
Maximum Inrush Power In W2 W
Important Information Attributes
- Operating Time
- < 50 ms, < 50 ms
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz, 24 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.10995231944444446
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.8 kg CO2 eq., 0.7516718750000001
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 251.33
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311042EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1824
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- control
- Energy Efficiency Optimized
- False
- Maximum Inrush Power In W
- 2 W
- Mounting Mode
- internal mounting
- Product Or Component Type
- voltage release
- Range
- TeSys
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 252 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To trip the circuit breaker when the control voltage drops below 35% of its rated voltage.& 10Between 35% and 70% of the rated voltage opening is possible but not ensured.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 613.2
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Ui] Rated Insulation Voltage
- 24 V IEC 60947-1
- Maximum Hold-in Power Consumption In Va
- 7 VA
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 66.000 g
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 251
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 6403.1
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 5.0007
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 36.161
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 7632.7
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 6403.1
- Water Use (M3 Eq) Operational Energy Use [B6]
- 8.8931
Threshold Tripping Voltage< 0.35 Un failsafe opening, < 0.35 Un failsafe opening< 0.35 Un failsafe opening, < 0.35 Un failsafe opening0.35...0.7 Un possible opening0.85...1.1 Un enabled closing
Carbon Footprint Of The Distribution Phase [A4]0.008617523333333335, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.029248616666666668, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]251 kg CO2 eq., 251.33
Local Publishable Date2025-02-26
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Device Short NameMN
Maximum Inrush Power In Va7 VA
Mechanical Durability20000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingYes
Voltage Release Typeundervoltage release
Pep CodeENVPEP2311042EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %32
Connections - Terminalsspring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
Maximum Hold-in Power Consumption In W2 W
Nbr. Of Units In Pkg.1
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]1.4341
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]251.33
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2706.6
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]373.69
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]2.4482
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1229.6
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1229.6
Customs Code8536308000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311042EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint252.22949033444445
Environmental DisclosureENVPEP2311042EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311042EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- voltage release
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
