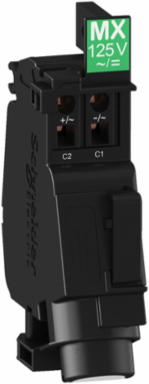

Schneider Electric GV4AS487 Voltage release, TeSys GV4, MX coil, 380 to 415VAC 50Hz, 440 to 480VAC 60Hz
- MPN: GV4AS487
- PPN: SCH-GV4AS487
CAD
$224.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV electrical trip unit, MX shunt trip, 380-415V AC 50Hz / 440-480V AC 60Hz, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Wire Stripping Length
- 8 mm
Complementary Attributes
- Impulse Duration
- >= 20 ms, >= 20 ms
Maximum Inrush Power In Va6 VA
Important Information Attributes
- Operating Time
- < 50 ms, < 50 ms
- [Uc] Control Circuit Voltage
- 440...480 V AC 60 Hz, 380...415 V AC 50 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.09759999999999999
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.656123076923077
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- MX
- Maximum Inrush Power In Va
- 6 VA
- Mounting Mode
- internal mounting
- Product Or Component Type
- voltage release
- Range
- TeSys
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 33
- Connections - Terminals
- spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 64.0 g
- Warranty (In Months)
- 18
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -0.3824
Threshold Tripping Voltage< 0.7 Un possible opening, < 0.7 Un possible opening0.7...1.1 Un failsafe opening, < 0.7 Un possible opening, < 0.7 Un possible opening
Carbon Footprint Of The Distribution Phase [A4]0.00836923076923077, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.034432, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0.00034253
Local Publishable Date2025-02-26
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311043EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1824
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationcontrol
Energy Efficiency OptimizedFalse
Mechanical Durability20000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingYes
Voltage Release Typeshunt trip release
Pep CodeENVPEP2311043EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
[Ui] Rated Insulation Voltage480 V IEC 60947-1
Maximum Hold-in Power Consumption In Va10 VA
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]0.3584
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]0.3584
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311043EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint1.7968668376923076
Environmental DisclosureENVPEP2311043EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311043EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- voltage release
ETIM
- ETIM 8
- EC001023
ETIM 9EC001023
