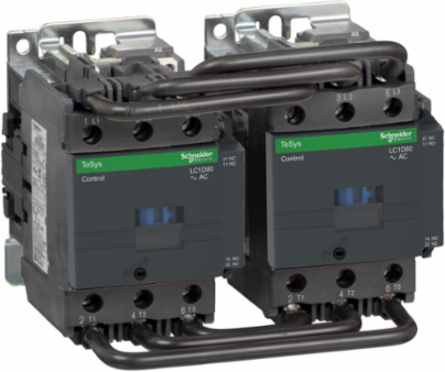

Schneider Electric LC2D80FE7 TeSys Deca Reversing Contactor 3P 80A 115V AC Coil
- MPN: LC2D80FE7
- PPN: SCH-LC2D80FE7
CAD
$1508.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric TeSys Deca reversing contactor is engineered for robust performance in automation and control applications, handling currents up to 80A with ease. This 3-pole contactor features a 115V AC coil, making it suitable for diverse industrial settings where dependable motor control and reversing functions are required. Recognized for its durability and efficiency, the TeSys Deca is an ideal choice for panel builders and system integrators seeking to enhance operational reliability in their electrical installations. With its compact design, it seamlessly integrates into various control systems, facilitating smoother and more efficient machinery operations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France

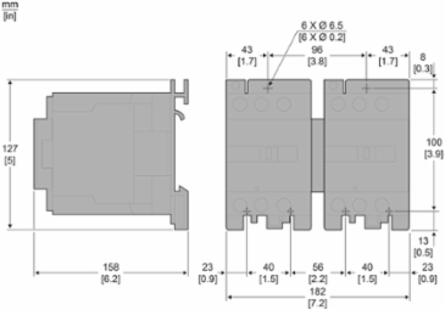

Depth158 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Maximum Horse Power Rating
- 20 hp at 200/208 V AC 60 Hz for 3 phase motors, 7.5 hp at 115 V AC 60 Hz for 1 phase motors15 hp at 230/240 V AC 60 Hz for 1 phase motors, 25 hp at 230/240 V AC 60 Hz for 3 phase motors60 hp at 460/480 V AC 60 Hz for 3 phase motors, 60 hp at 575/600 V AC 60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 80 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz1...1.1 Uc (55-70 °C):operational AC 50/60 Hz
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11100 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Inrush Power In Va
- 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hzshocks contactor open8 Gn for 11 msvibrations contactor closed3 Gn, 5...300 Hz, shocks contactor closed10 Gn for 11 ms
- Mounting Support
- rail, plate
- Power Range
- 15-25 kW 200-240 V 3 phase30-50 kW 380-440 V 3 phase, 30-50 kW 480-500 V 3 phase, 55-100 kW 480-500 V 3 phase
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4
- Certificate Agency
- UL, CSA, RINA, GOST, CCC, DNV, LROS (Lloyds register of shipping), GL, BV, UKCA
- [Uc] Control Circuit Voltage
- 115 V, 115 V AC 50/60 Hz
- Connections - Terminals
- control circuit screw clamp terminals 2 1-4 mm²solidcontrol circuit screw clamp terminals 1 1-2.5 mm²flexible with cable endpower circuit connector 2 4-25 mm²flexible without cable endpower circuit connector 1 4-50 mm²flexible with cable endpower circuit connector 2 4-16 mm²flexible with cable end, power circuit connector 1 4-50 mm²solid, power circuit connector 2 4-25 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid, power circuit connector 1 4-50 mm²flexible without cable end
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 8.233817789463416, 8 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 22 kg CO2 eq., 22.07106103457479
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 0.8 mOhm - Ith 125 A 50 Hz for power circuit
- Compatibility Code
- LC2D
- Contactor Coil Voltage
- 115 V AC standard
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 6-10 W 50/60 Hz
- Mechanical Durability
- 4 Mcycles
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- reversing contactor
- Range
- TeSys
- Returnability
- No
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1102005EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 76
- Width Nominal
- 182 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit125 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability0.8 Mcycles 125 A AC-1 <= 440 V, 1.5 Mcycles 80 A AC-3 <= 440 V, 1.5 Mcycles 80 A AC-3e <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw22 kW at 220...230 V AC 50 Hz37 kW at 380...400 V AC 50 Hz45 kW at 415...440 V AC 50 Hz55 kW at 500 V AC 50 Hz, 45 kW at 660...690 V AC 50 Hz
Power Dissipation Per Pole12.5 W AC-15.1 W AC-3, 5.1 W AC-3e
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2power circuit 12 N.m connector flat Ø 6 to Ø 8 mmpower circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage115 V
[Ie] Rated Operational Current125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1power circuit 1000 V IEC 60947-4-1
Hold-in Power Consumption In Va26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
Carbon Footprint Of The Distribution Phase [A4]0.43540351509549746, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.6 kg CO2 eq., 0.6242857846188733
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]162 kg CO2 eq., 161.83264492753617
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1924
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-1200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit
Coil Technologywithout built-in suppressor module
Contact CompatibilityM11
Device Short NameLC2D
Flame RetardanceV1 conforming to UL 94
Interlocking Typemechanical
Motor Starter Typereversing contactor
Operating Time20...35 ms closing6...20 ms opening
Pole Contact Composition3 NO
Product NameTeSys Deca
Protective TreatmentTH IEC 60068-2-30
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint193 kg CO2 eq.
Inf Motor Phase Current80 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2422.14
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal127 mm
[Icw] Rated Short-time Withstand Current135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Rated Thermal Current (Ith)125 A
Package Weight(Lbs)3.760 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP1102005EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint193.19721305128874
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
