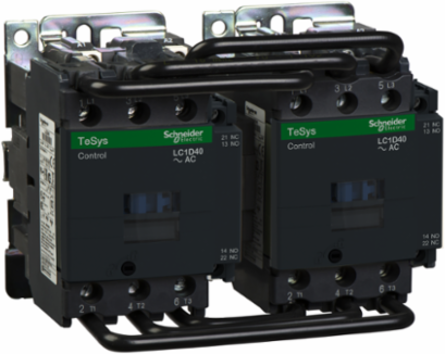

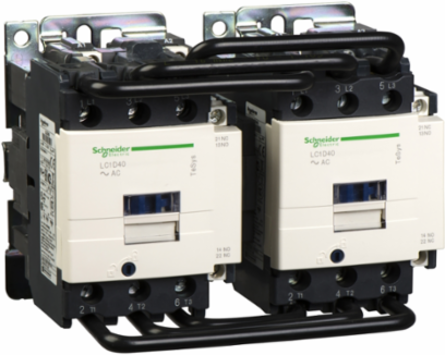

Schneider Electric LC2D40G7 Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 120V AC 60Hz coil
Schneider Electric LC2D40G7 Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 120V AC 60Hz coil
- MPN: LC2D40G7
- PPN: SCH-LC2D40G7
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1002.35/ EA
Description
Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, <=440V, 40A, 120V AC 60Hz coil
Specifications
Environment
- Product Certifications
- GOST || CCC || GL || LROS (Lloyds register of shipping) || BV || UL || DNV || RINA || CSA
- Standards
- CSA C22.2 No 14 || IEC 60947-4-1 || EN 60947-4-1 || UL 508 || IEC 60947-5-1 || EN 60947-5-1
- Vibration Resistance
- 2 gn 5-300 Hz contactor opened || 4 gn 5-300 Hz contactor closed
- Protective Treatment
- TH 3)IEC 60068
- Operating Altitude
- 3000 m without derating
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc
Ambient Air Temperature For Operation-5-60 °C
Shock Resistance10 gn contactor closed || 8 gn contactor opened
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP2X IEC 60529 || IP2X VDE 0106
Fire Resistance850 °C IEC 60695-2-1
Heat Dissipation6-10 W at 50/60 Hz for control circuit
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts
- Minimum Switching Current
- 5 mA for control circuit
- Height
- 132 mm
- Average Impedance
- Ith 60 A 50 Hz for power circuit
- Control Circuit Voltage Limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
- Mounting Support
- rail || plate
- Insulation Resistance
- > 10 MOhm for control circuit
- Irms Rated Making Capacity
- 140 A AC for control circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
- Net Weight
- 2.4 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Flame Retardance
- V1 UL 94
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Assembly Style
- ready assembled
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Operating Time
- 12...26 ms closing || 4...19 ms opening
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- control circuit 600 V CSA || control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1
Interlocking Typemechanical
[Ue] Rated Operational Voltagepower circuit <= 1000 V AC 25...400 Hz
Power Dissipation Per Pole2.4 W AC-3 - Ith 60 A
Auxiliary Contact Composition1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for control circuit || 60 A (at 60 °C) for power circuit
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating10 A gG for control circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
Inrush Power In Va200-200 VA cos phi 0.75 (at 20 °C) || 220-220 VA cos phi 0.75 (at 20 °C)
Coil Technologywithout built-in bidirectional peak limiting diode suppressor
Minimum Switching Voltage17 V for control circuit
Tightening Torquecontrol circuit 1.7 N.m 1-2.5 mm² flat Ø 6 mm || control circuit 1.7 N.m 1-2.5 mm² Philips No 2 || control circuit 1.7 N.m 1-4 mm² flat Ø 6 mm || control circuit 1.7 N.m 1-4 mm² Philips No 2 || power circuit 5 N.m 1-25 mm² hexagonal || power circuit 8 N.m 1-35 mm² hexagonal
Mechanical Durability6000000 cycles
Hold-In Power Consumption In Va20-20 VA 50 Hz cos phi 0.3 (at 20 °C) || 22-22 VA 60 Hz cos phi 0.3 (at 20 °C) || 26-26 VA 50 Hz cos phi 0.3 (at 20 °C) || 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
Width165 mm
Depth142 mm
Protective Coverwith
Specifications
- Control Circuit Type
- AC
- Range Of Product
- TeSys Deca
- Product Or Component Type
- reversing contactor
- Pole Contact Composition
- 3 NO
- [Ie] Rated Operational Current
- power circuit 40 A AC AC-3 60 °C)
- Motor Power Kw
- 11 kW 220...240 V AC 50/60 Hz || 22 kW 415 V AC 50/60 Hz || 22 kW 440 V AC 50/60 Hz || 22 kW 500 V AC 50/60 Hz || 30 kW 660...690 V AC 50/60 Hz || 18.5 kW 380...400 V AC 50/60 Hz
- Coil Type
- standard
[Uc] Control Circuit Voltage120 V AC 60 Hz
Contactor Applicationmotor control
Connections - Terminalscontrol circuit 1 1-4 mm²flexible with cable end || power circuit 2 1-25 mm²flexible with cable end || power circuit 2 1-25 mm²flexible without cable end || power circuit 2 1-25 mm²solid without cable end || power circuit 2 1-35 mm²flexible with cable end || power circuit 2 1-35 mm²flexible without cable end || power circuit 2 1-35 mm²solid without cable end || control circuit 1 1-4 mm²flexible without cable end || control circuit 1 1-4 mm²solid without cable end || control circuit 2 1-2.5 mm²flexible with cable end || control circuit 2 1-4 mm²flexible without cable end || control circuit 2 1-4 mm²solid without cable end || power circuit 1 1-35 mm²flexible with cable end || power circuit 1 1-35 mm²flexible without cable end || power circuit 1 1-35 mm²solid without cable end
Utilisation CategoryAC-4 || AC-2 || AC-3
Poles Description3P
Device Short NameLC2D
