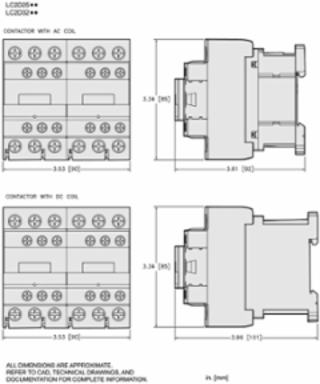

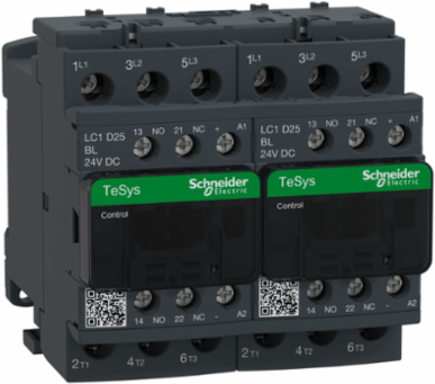

Schneider Electric LC2D25BL TeSys Deca Reversing Contactor 3P 25A 24V DC Coil 90mm Width
- MPN: LC2D25BL
- PPN: SCH-LC2D25BL
CAD
$752.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth101 mm
Complementary Attributes
- Control Circuit Type
- DC low consumption, DC low consumption
- Control Circuit Voltage Limits
- 0.1...0.3 Uc (-40-70 °C):drop-out DC0.8...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
- Maximum Motor Phase Current
- 25 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 450 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating3 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 200/208 V AC 60 Hz for 3 phase motors2 hp at 115 V AC 60 Hz for 1 phase motors, 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors15 hp at 460/480 V AC 60 Hz for 3 phase motors20 hp at 575/600 V AC 60 Hz for 3 phase motors
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 5.5 kW at 220...230 V AC 50-60 Hz11 kW at 380...400 V AC 50-60 Hz, 11 kW at 415 V AC 50-60 Hz, 11 kW at 440 V AC 50-60 Hz15 kW at 500 V AC 50-60 Hz, 15 kW at 660...690 V AC 50-60 Hz
- Power Dissipation Per Pole
- 1.25 W AC-33.2 W AC-1, 1.25 W AC-3e
- Product Name
- TeSys D, TeSys Deca
- Range Of Product
- TeSys D, TeSys Deca
- Utilisation Category
- AC-1, AC-3, AC-3e
- Certificate Agency
- DNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA, CB
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.9114035758292245
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 283 kg CO2 eq., 282.74663995873647
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Contact Compatibility
- M5
- Device Short Name
- LC2D
- Flame Retardance
- V1 conforming to UL 94
- Interlocking Type
- mechanical
- Motor Starter Type
- reversing contactor
- Operating Time
- 65.45...88.55 ms closing20...30 ms opening
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- reversing contactor
- Returnability
- Yes
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 290 kg CO2 eq.
- Inf Motor Phase Current
- 25 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 689.85
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 85 mm
- [Ie] Rated Operational Current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- [Uc] Control Circuit Voltage
- 24 V24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Rated Thermal Current (Ith)
- 40 A
- Package Weight(Lbs)
- 1.275 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.65 Mcycles 25 A AC-3 <= 440 V, 1.4 Mcycles 40 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor closed15 Gn for 11 ms, shocks contactor open8 Gn for 11 ms
Mounting Supportrail, plate
Power Range4-6 kW 200-240 V 3 phase7-11 kW 380-440 V 3 phase, 7-11 kW 480-500 V 3 phase
RangeTeSys, TeSys Deca
Tightening Torquepower circuit 2.5 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage24 V
[Icw] Rated Short-time Withstand Current50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit screw clamp terminals 2 2.5-10 mm²flexible without cable endpower circuit screw clamp terminals 1 1-10 mm²flexible with cable end, power circuit screw clamp terminals 1 1.5-10 mm²solid, power circuit screw clamp terminals 2 2.5-10 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]0.3652458529429971, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.837809627300629
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1102030EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance2 mOhm - Ith 40 A 50 Hz for power circuit
Compatibility CodeLC2D
Contactor Coil Voltage24 V DC low consumption
Fire Resistance850 °C IEC 60695-2-1
Inrush Power In W2.4-2.4 W 20 °C)
Mechanical Durability30 Mcycles
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH IEC 60068-2-30
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv6.1
Time Constant40 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP110230EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %66
Width Nominal90 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In W2.4-2.4 W 20 °C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP110230EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Carbon Footprint289.8610990148093
Circularity ProfileENVEOLI1102030EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP110230EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Range Of Product
- TeSys D, TeSys Deca
Product Or Component Typereversing contactor
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
