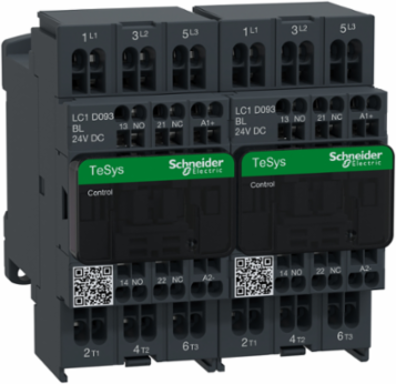

Schneider Electric LC2D093BL TeSys Deca Reversing Contactor, 3 Poles, 9A, 24V DC Coil, 90mm Width
- MPN: LC2D093BL
- PPN: SCH-LC2D093BL
CAD
$585.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides 440V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 95 mm |
|---|
Complementary Attributes
| Control Circuit Type | DC low consumption, DC low consumption |
|---|---|
| Maximum Horse Power Rating | 2 hp at 230/240 V AC 60 Hz for 3 phase motors0.5 hp at 115 V AC 60 Hz for 1 phase motors1 hp at 230/240 V AC 60 Hz for 1 phase motors, 2 hp at 200/208 V AC 60 Hz for 3 phase motors5 hp at 460/480 V AC 60 Hz for 3 phase motors7.5 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Maximum Motor Phase Current | 9 A |
| Minimum Switching Current | 5 mA for signalling circuit |
| Rated Breaking Capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| Irms Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
|---|---|
| Control Circuit Voltage Limits | 0.1...0.3 Uc (-40-70 °C):drop-out DC0.8...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Minimum Switching Voltage | 17 V for signalling circuit |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Associated Fuse Rating | 25 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1 |
| Electrical Durability | 0.6 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 9 A AC-3 <= 440 V, 2 Mcycles 9 A AC-3e <= 440 V |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms |
| Mounting Support | plate, rail |
| Product Name | TeSys D, TeSys Deca |
| Range Of Product | TeSys D, TeSys Deca |
| Control Circuit Voltage | 24 V |
| [Ui] Rated Insulation Voltage | signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1 |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2.71593664622121, 3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 5.608073165386766 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1102030EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Coil Technology | built-in bidirectional peak limiting diode suppressor |
| Contact Compatibility | M5 |
| Fire Resistance | 850 °C IEC 60695-2-1 |
| Inrush Power In W | 2.4-2.4 W 20 °C) |
| Mechanical Durability | 30 Mcycles |
| Operating Time | 65.45...88.55 ms closing20...30 ms opening |
| Pole Contact Composition | 3 NO |
| Product Or Component Type | reversing contactor |
| Returnability | No |
| Signalling Circuit Frequency | 25...400 Hz |
| Sustainable Packaging | Yes |
| Time Constant | 40 ms |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP110230EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 75 |
| Width Nominal | 90 mm |
| [Ie] Rated Operational Current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit16 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] Control Circuit Voltage | 24 V24 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Rated Thermal Current (Ith) | 16 A |
| Package Weight(Lbs) | 1.224 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Contactor Application | resistive load, motor control |
| Insulation Resistance | > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit |
| Motor Power Kw | 2.2 kW at 220...230 V AC 50-60 Hz4 kW at 380...400 V AC 50-60 Hz, 4 kW at 415 V AC 50-60 Hz, 4 kW at 440 V AC 50-60 Hz5.5 kW at 500 V AC 50-60 Hz, 5.5 kW at 660...690 V AC 50-60 Hz |
| Power Dissipation Per Pole | 0.2 W AC-31.56 W AC-1, 0.2 W AC-3e |
| Range | TeSys, TeSys Deca |
| Utilisation Category | AC-1, AC-3, AC-3e |
| Certificate Agency | DNV, CSA, CCC, UL, GL, LROS (Lloyds register of shipping), BV, RINA, GOST, UKCA |
| Connections - Terminals | control circuit spring terminals 2 2.5-2.5 mm²flexible without cable end, power circuit spring terminals 1 2.5-2.5 mm²flexible without cable end, power circuit spring terminals 2 2.5-2.5 mm²flexible without cable end, control circuit spring terminals 1 2.5-2.5 mm²flexible without cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.3099478695234948, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.08582982648121525 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 30 kg CO2 eq., 29.850162162162164 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Impedance | 2.5 mOhm - Ith 16 A 50 Hz for power circuit |
| Compatibility Code | LC2D |
| Device Short Name | LC2D |
| Flame Retardance | V1 conforming to UL 94 |
| Interlocking Type | mechanical |
| Number Of Poles | 3P |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TH IEC 60068-2-30 |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Software Version | v5.9.4 |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals pozidriv No 2power circuit 2.5 N.m screw clamp terminals pozidriv No 2 |
| Total Lifecycle Carbon Footprint | 39 kg CO2 eq. |
| Inf Motor Phase Current | 9 A |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 446.76 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 99 mm |
| [Icw] Rated Short-time Withstand Current | 30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit |
| [Ith] Conventional Free Air Thermal Current | 16 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC |
| Hold-in Power Consumption In W | 2.4-2.4 W 20 °C |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Climatic Withstand | IACS E10, IEC 60947-1 Annex Q category D |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -40-60 °C-40-60 °C60-70 °C with derating |
| Environmental Disclosure | ENVPEP110230EN |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -60-80 °C, -60-80 °C |
|---|---|
| Take Back | No |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 38.56994966977485 |
| Circularity Profile | ENVEOLI1102030EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP110230EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | TeSys D, TeSys Deca |
|---|
| Product Or Component Type | reversing contactor |
|---|
ETIM
| ETIM 8 | EC000010 |
|---|
| ETIM 9 | EC000010 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | preassembled with reversing power busbar |
|---|
