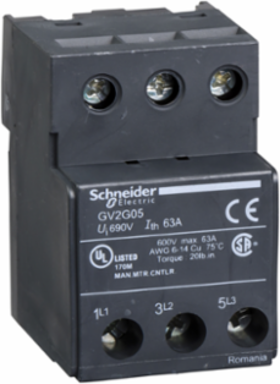

Schneider Electric GV2G05 TeSys Terminal Block 3P 63A 690V for DIN Rail, IP20
- MPN: GV2G05
- PPN: SCH-GV2G05
CAD
$54.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV terminal block, 3 phases, 63A/690V, to supply busbar sets GV2G. To be mounted next to the devices connected by the busbar sets, on the same DIN rail, and connected by one of the busbar outlets. It can be fitted with a current limiter GV1L3 for all parallel motor starters (to be ordered separately). Connection to the supply cable by screw connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United Kingdom, Morocco, Romania
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- TeSys U, TeSys K, TeSys GV2, TeSys Deca
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207006
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV2G
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Name
- FT
- Range
- Linergy
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ie] Rated Operational Current
- 63 A
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 120.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Connections - Terminalsscrew clamp terminals 1 cable(s) 1.5-25 mm² - solid, screw clamp terminals 2 cable(s) 1.5-6 mm² - solid, screw clamp terminals 1 cable(s) (4 AWG) - flexible, screw clamp terminals 1 cable(s) (4 AWG) - solid, screw clamp terminals 1 cable(s) 1.5-16 mm² - flexible with cable end, screw clamp terminals 1 cable(s) 1.5-16 mm² - flexible without cable end, screw clamp terminals 2 cable(s) 1.5-4 mm² - flexible with cable end, screw clamp terminals 2 cable(s) 2.5-4 mm² - flexible without cable end
Local Publishable Date2026-07-10
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGV2G
Mounting Location35 mm DIN rail
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeterminal block
ReturnabilityYes
Tightening Torque1.7-1.7 N.m screw clamp terminals2.2-2.2 N.m connector
Pep CodeENVPEP2207006EN
[Ui] Rated Insulation Voltage690 V IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2207006EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2207006EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- TeSys U, TeSys K, TeSys GV2, TeSys Deca
Product Or Component Typeterminal block
ETIM
- ETIM 8
- EC002270
ETIM 9EC002270
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
