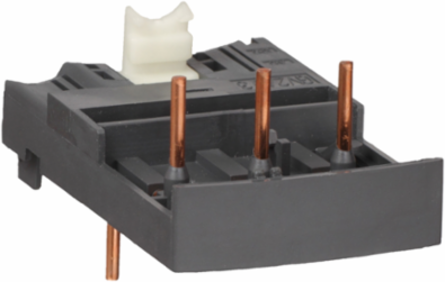

Schneider Electric GV2AF3 TeSys Deca Combination Block, 32A, Set of 10, 3 Poles
- MPN: GV2AF3
- PPN: SCH-GV2AF3
CAD
$43.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV accessory, combination block for motor starter assembly. For the connection between a motor circuit breaker GV2 or a fuse carrier LS1D32 and contactor LC1D09-D38. To be used when the assembly is mounted directly on DIN rails. Sold in lots of 10 units.
Features
- The Schneider GV2AF3 is a specialized electrical connection link designed to bridge the gap between a manual motor starter and a contactor. It provides a rigid, high-conductivity 3-phase connection that eliminates the need for manual wiring between components, resulting in a cleaner, faster, and more reliable motor starter assembly.
- This combination block is engineered to connect a TeSys GV2 (GV2ME or GV2P) motor circuit breaker or an LS1D32 fuse carrier to a TeSys Deca (formerly TeSys D) contactor. Specifically, it is compatible with contactor models LC1D09 through LC1D38, creating a unified Power Control and Protection (PCP) unit.

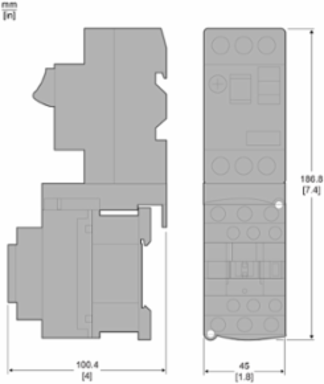

- By using the GV2AF3, you create a "compact starter" that mounts directly onto a single 35mm DIN rail. This integrated assembly significantly reduces the vertical footprint inside your electrical cabinet compared to using two separate components with looped wiring, allowing for more high-density control configurations.
- Designed for rapid assembly, the block features integrated pins that slide directly into the screw-clamp terminals of both the circuit breaker and the contactor. Once the terminals are tightened, the GV2AF3 creates a vibration-resistant, permanent mechanical and electrical bond that is ideal for industrial machinery subject to constant movement.
- The GV2AF3 is rated for an operational current of up to 32 Amps and is designed for 3-pole (3P) applications. Its heavy-duty copper construction ensures minimal voltage drop and heat generation, providing the reliable power transfer necessary for 600V industrial motor circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Hungary, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- TeSys GV2, TeSys Deca
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GV2AF
- Number Of Poles
- 3P
- Product Name
- FT
- Range
- Linergy
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2207006EN
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 22.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2207006
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2AF
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecombination block
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current32 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2207006EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Product CompatibilityLC1D09...D38
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typecombination block
ETIM
- ETIM 8
- EC002050
ETIM 9EC002050
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
