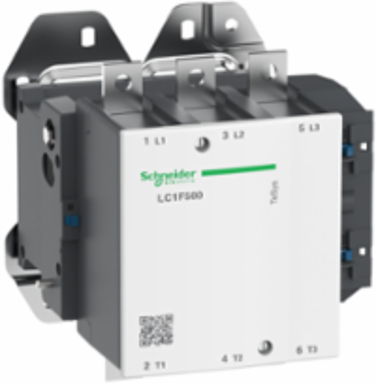

Schneider Electric LC1F500N7 TeSys F Contactor 3P (3 NO) 500 A 230 mm Width 238 mm Height
- MPN: LC1F500N7
- PPN: SCH-LC1F500N7
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This robust contactor from Schneider Electric is designed for heavy-duty applications, featuring three normally open poles and a high current capacity of 500 A. With a compact width of 230 mm and a height of 238 mm, it fits into a variety of automation and control setups, making it ideal for use in industrial environments. Engineered to deliver reliable performance in demanding conditions, the LC1F500N7 TeSys F Contactor efficiently manages electrical loads, ensuring safe operation in systems that require durable control solutions.
Documentation & Downloads
Specifications
Additional
- Amperage
- 700 A AC-1, 500 A AC-3 at <= 440 V
- Rated Impulse Withstand Voltage
- 8 kV
- Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 460 V DC
- Rated Operational Current
- 700 A AC-1, 500 A AC-3 at <= 440 V
- Motor Power
- 250 kW at 380...400 V AC-3, 280 kW at 415 V AC-3, 295 kW at 440 V AC-3, 355 kW at 500 V AC-3, 335 kW at 660...690 V AC-3, 335 kW at 1000 V AC-3, 147 kW at 220...230 V AC-3, 80 kW at 400 V AC-4
- Operating Time
- 40...65 ms closing, 100...170 ms opening
- Mechanical Durability
- 10 million cycles
- Hold-in Power Consumption
- 18 VA, 40...400 Hz
- Average Impedance
- 0.18 mOhm at 700 A 50 Hz
- Overvoltage Category
- III
- Protective Treatment
- TH
- Ambient Air Temperature for Storage
- -60 to 80 C (-76 to 176 F)
- Width
- 233 mm (9.17 in)
- Depth
- 232 mm (9.13 in)
- Mounting Support
- Plate
- Connections - Terminals
- Control circuit screw clamp terminals 1 & 2 flexible 1-4 mm2 with/without cable end, solid 1-4 mm2 without cable end; power circuit bar 2 (40 x 5 mm); power circuit lug-ring terminals 2 (240 mm2); power circuit bolted connection
- Range
- TeSys F
- Compatibility Code
- LC1F
- Pole Contact Composition
- 3 NO
- Product Certifications
- CCC, BV, RINA, RMROS, LR, DNV, UL, ABS, CB, UKCA
- Mercury Free
- Yes
- Eu RoHS Directive
- Compliant with Exemptions
- Weee
- Must be disposed per EU waste collection; no landfill
- Circularity Profile
- ENVEOLI1505009EN
- Warranty
- 18 months
- Control Circuit Voltage Limits
- Operational 0.85...1.1 Uc, Drop-out 0.3...0.5 Uc, 40...400 Hz
Rated Breaking Capacity4000 A IEC 60947-4-1
Short-Time Withstand Current4200 A (10s), 3200 A (30s), 2400 A (1 min), 1500 A (3 min), 1200 A (10 min)
Control Circuit Voltage415 V AC 40...400 Hz
Thermal Current700 A at 40 C
Poles3P (3 NO)
Maximum Operating Rate2400 cyc/h at 55 C
Power Dissipation Per Pole88 W AC-1, 45 W AC-3
Inrush Power1100 VA, 40...400 Hz
Rated Insulation Voltage1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, VDE 0106
Ambient Air Temperature for Operation-5 to 55 C (-5 to 131 F)
Permissible Ambient Air Temperature-40 to 70 C (-40 to 158 F)
Height238 mm (9.37 in)
Net Weight11.35 kg (25.02 lb)
Tightening TorqueControl circuit 1.2 N m, power circuit 35 N m
Product Or Component TypeContactor
Device Short NameLC1F
Contactor ApplicationResistive load, motor control
StandardsEN 60947-1, EN 60947-4-1, IEC 60947-1, IEC 60947-4-1, JIS C8201-4-1
RoHS ComplianceCompliant with Exemptions
China RoHS RegulationOut of China RoHS scope; substance declaration provided
Reach RegulationContains Substances of Very High Concern above threshold
Environmental DisclosureENVPEP1505009EN
Sustainable Offer StatusGreen Premium
Operating Altitude3000 m without derating
Control Circuit TypeAC 40...400 Hz
