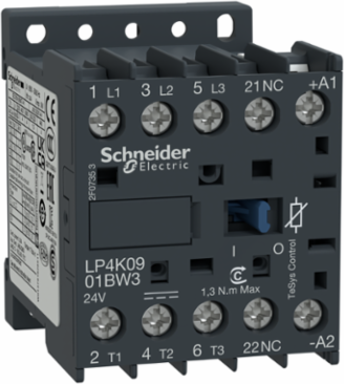

Schneider Electric LP4K0901BW3 TeSys K 3P Contactor, 9A, 440V, 24V DC Coil, 1NC Aux Contact

MPN: LP4K0901BW3
PPN: SCH-LP4K0901BW3
UNSPSC: 39121529

$118.78

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys K contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Features

TeSys K is a compact contactor range with a wide variety of coil voltage and terminal connection options
The offer features specific versions for railway (TeSys S207) and electrodomestic (TeSys S335) applications
One of the smallest contactor offerings in the market
The range delivers strong performance for its compact size and promises seamless integration in all applications.
Widely used for industry, infrastructure and building applications
Designed for simple control systems

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	57 mm

Weight	221 g

Complementary Attributes

Irms Rated Making Capacity	110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947
Icw Rated Short Time Withstand Current	90 A 50 °C - 1 s for power circuit85 A 50 °C - 5 s for power circuit80 A 50 °C - 10 s for power circuit60 A 50 °C - 30 s for power circuit45 A 50 °C - 1 min for power circuit40 A 50 °C - 3 min for power circuit20 A 50 °C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit110 A - 100 ms for signalling circuit
Uc Control Circuit Voltage	DC, 24 V
Ui Rated Insulation Voltage	signalling circuit 600 V UL 508signalling circuit 600 V CSA C22.2 No 14power circuit 600 V UL 508power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, power circuit 600 V CSA C22.2 No 14
Control Circuit Voltage Limits	operational: 0.7...1.3 Uc (at = 0.10 Uc (at <50 °C)
Maximum Operating Rate	3600 cyc/h
Minimum Switching Voltage	17 V for signalling circuit

Rated Breaking Capacity	110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947
Ie Rated Operational Current	9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Ue Rated Operational Voltage	power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
Control Circuit Type	DC wide range
Maximum Motor Phase Current	9 A
Minimum Switching Current	5 mA for signalling circuit
Uimp Rated Impulse Withstand Voltage	8 kV

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660
Electrical Durability	1.3 Mcycles 9 A AC-3 <= 440 V, 1.3 Mcycles 9 A AC-3e <= 440 V0.16 Mcycles 20 A AC-1 <= 690 V, 0.02 Mcycles 54 A AC-4 <= 440 V
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Mounting Support	rail, plate
Utilisation Category	AC-3, AC-3e, AC-1, AC-4
Certificate Agency	CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Carbon Footprint Of The Distribution Phase A4	0.4379807907104773, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.030109360466276436
Carbon Footprint Of The Use Phase B2 B3 B4 B6	117 kg CO2 eq., 116.84560644093847
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
Compatibility Code	LP4K
Heat Dissipation	1.8-1.8 W
Mechanical Durability	30 Mcycles
Operating Time	10...20 ms coil de-energisation and NO opening30...40 ms coil energisation and NO closing
Pole Contact Composition	3 NO
Product Or Component Type	contactor
Range Of Product	TeSys K
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	58 mm
Nbr. Of Units In Pkg.	1
Hold In Power Consumption In W	1.8-1.8 W 20 °C
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	289.08

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Contactor Application	motor control, resistive load
Flame Retardance	V1 conforming to UL 94requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Motor Power Kw	4 kW 380...415 V AC 50/60 Hz AC-3e, 4 kW 440/690 V AC 50/60 Hz AC-3e4 kW 380...415 V AC 50/60 Hz AC-4, 4 kW 440/690 V AC 50/60 Hz AC-42.2 kW 220...230 V AC 50/60 Hz AC-34 kW 380...415 V AC 50/60 Hz AC-3, 4 kW 440/690 V AC 50/60 Hz AC-3, 2.2 kW 220...230 V AC 50/60 Hz AC-3e, 2.2 kW 220...230 V AC 50/60 Hz AC-4
Tightening Torque	0.8-1.3 N.m screw clamp terminals Philips No 2, 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm, 0.8-1.3 N.m screw clamp terminals pozidriv No 2
Connections Terminals	2 0.75-4 mm²flexible without cable end, 2 0.34-1.5 mm²flexible with cable endscrew clamp terminalsscrew clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable endscrew clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid, power circuit screw clamp terminals 2 1.5-1.5 mm²flexible with cable end
Ith Conventional Free Air Thermal Current	20 A (at 60 °C) for power circuit, 10 A (at 50 °C) for signalling circuit
Carbon Footprint Of The End Of Life Phase C1 To C4	0.3180571443438615, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.1348165272383228
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1503003
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2448
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	with integral suppression device
Device Short Name	LP4K
Inrush Power In W	1.8-1.8 W 20 °C)
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	119 kg CO2 eq.
Pop Directive	No POPs
Data Source	extrapolated product
Width Nominal	45 mm
Customs Code	8536490065
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	63

Environment Attributes Main

Ambient Air Temperature For Storage	-50-80 °C, -50-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	118.76657026369742
Circularity Profile	ENVEOLI1503003
Eu Rohs Directive	Compliant
Operating Altitude	6561.68 ft (2000 m) without derating
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1503003EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-25-50 °C-25-50 °C
Environmental Disclosure	ENVPEP1503003EN
Ip Degree Of Protection	IP2X
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Verification Date	2026-03-23
Psr Version	PSR-0005-ed3-2023 06 06
