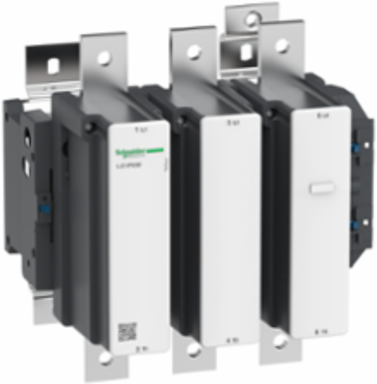

Schneider Electric LC1F630U7 TeSys F Contactor 3P 630A 240V AC, 1200 Cycles/Hour, IP20
- MPN: LC1F630U7
- PPN: SCH-LC1F630U7
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F contactor, 3 poles (3NO), 630A/1000V AC-3, for motor applications up to 250kW@400V. It provides a low sealed consumption 240V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 1200 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Depth255 mm
Complementary Attributes
- Control Circuit Type
- AC 40...400 Hz
- Maximum Motor Phase Current
- 630 A
- Rated Breaking Capacity
- 5040 A conforming to IEC 60947-4-1
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 40...400 Hz 55 °C)drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
Maximum Operating Rate1200 cyc/h 55 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Power Range
- 250-500 kW 380-440 V 3 phase110-220 kW 200-240 V 3 phase, 250-500 kW 480-500 V 3 phase
- Certificate Agency
- UL, LROS (Lloyds register of shipping), ABS, RINA, RMRoS, CSA, DNV, CB, BV, UKCA
- [Ith] Conventional Free Air Thermal Current
- 1000 A (at 40 °C), 1250 A
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 6.172041606, 6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.049597841
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 4 282 kg CO2 eq., 4282.299183
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 1000 A gG at <= 440 V630 A aM at <= 440 V
- Compatibility Code
- LC1F
- Device Short Name
- LC1F
- Heat Dissipation
- 20-20 W
- Mechanical Durability
- 5 Mcycles
- Mounting Support
- plate
- Operating Time
- 40...80 ms closing100...200 ms opening
- Pole Contact Composition
- 3 NO
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys F
- Software Version
- v6.1
- Tightening Torque
- control circuit 1.2 N.mpower circuit 58 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 4905.6
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 304 mm
- [Icw] Rated Short-time Withstand Current
- 5050 A 40 °C - 10 s4400 A 40 °C - 30 s3400 A 40 °C - 1 min2200 A 40 °C - 3 min1600 A 40 °C - 10 min
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Rated Thermal Current (Ith)
- 1000 A
- Package Weight(Lbs)
- 18.75 kg
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 69251.8904
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power Kw335 kW at 380...400 V AC 50/60 Hz (AC-3)375 kW at 415 V AC 50/60 Hz (AC-3)400 kW at 440 V AC 50/60 Hz (AC-3), 400 kW at 500 V AC 50/60 Hz (AC-3)450 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3)200 kW at 220...230 V AC 50/60 Hz (AC-3), 100 kW at 400 V AC 50/60 Hz (AC-4)
Utilisation CategoryAC-1, AC-4, AC-3
[Ie] Rated Operational Current1000 A (at <40 °C) at <= 440 V AC AC-1, 630 A (at <55 °C) at <= 440 V AC AC-3
[Uc] Control Circuit Voltage240 V, 240 V AC 40...400 Hz
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solid without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 60 x 5 mm, power circuit bolted connection
Carbon Footprint Of The End-of-life Phase [C1 To C4]35.57960214, 36 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]113 kg CO2 eq., 113.121866
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1505009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance0.12 mOhm - Ith 1000 A 50 Hz
Contactor Coil Voltage240 V AC standard
Energy Efficiency OptimizedFalse
Inrush Power In Va1650-1650 VA, 40...400 Hz 0.9 20 °C)
Motor Starter Typedirect on-line contactor
Number Of Poles3P
Overvoltage CategoryIII
Power Dissipation Per Pole120 W AC-148 W AC-3
Product Or Component Typecontactor
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint4 437 kg CO2 eq.
Pep CodeENVPEP1012011EN
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %95
Width Nominal309 mm
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-11500 V VDE 0110 group C
Hold-in Power Consumption In Va22-22 VA, 40...400 Hz 0.9 20 °C)
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]69251.8904
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1505009EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C-40-70 °C
- Pep Code
- ENVPEP1012011EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint4437.222291
Environmental DisclosureENVPEP1012011EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
