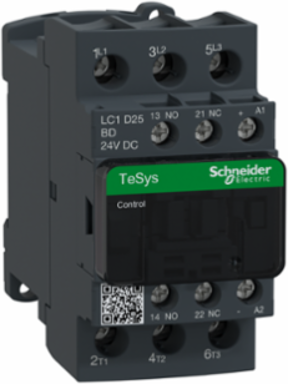

Schneider Electric LC1D25BD TeSys Deca Contactor 3P 25A 24V DC Coil, IP20, 45mm Width
- MPN: LC1D25BD
- PPN: SCH-LC1D25BD
CAD
$321.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- The Schneider Electric TeSys LC1D25BD is a rugged 3-pole, 25-Amp IEC contactor engineered for mid-range motor control. In typical Canadian 600V industrial power systems, it is rated to handle motors up to 20 HP at 600V or 15 HP at 480V, making it a versatile choice for driving compressors, heavy-duty pumps, and industrial conveyors.
- This model is equipped with a 24V DC coil. The "BD" designation indicates a low-consumption coil that includes a built-in bidirectional peak-limiting diode suppressor. This integrated protection prevents inductive voltage spikes from damaging sensitive PLC outputs, allowing for direct control from automation controllers without the need for additional surge protection.
- The low-consumption DC coil draws significantly less power than standard AC coils, allowing many PLC transistor outputs to drive the contactor directly. This eliminates the cost and space required for interposing relays, reduces heat dissipation within your enclosure, and simplifies the overall wiring of your control system.
- The LC1D25BD comes standard with 1NO (Normally Open) and 1NC (Normally Closed) auxiliary contacts built into the base unit. This enables you to provide a "running" signal to your HMI and a "safety interlock" or "fault" signal to your control logic simultaneously, without needing to purchase or install additional add-on contact blocks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, Indonesia, Singapore, United States, ZZ
Depth101 mm
Complementary Attributes
- Maximum Horse Power Rating
- 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors2 hp at 115 V AC 50/60 Hz for 1 phase motors7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors15 hp at 460/480 V AC 50/60 Hz for 3 phase motors20 hp at 575/600 V AC 50/60 Hz for 3 phase motors, 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors
- Control Circuit Voltage Limits
- 0.1...0.25 Uc (-40-70 °C):drop-out DC0.7...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
- Maximum Motor Phase Current
- 25 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 450 A at 440 V for power circuit conforming to IEC 60947
Control Circuit TypeDC standard
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 11 kW at 380/400 V AC 50/60 Hz (AC-3e), 11 kW at 415/440 V AC 50/60 Hz (AC-3e), 15 kW at 500 V AC 50/60 Hz (AC-3e), 15 kW at 660/690 V AC 50/60 Hz (AC-3e), 5.5 kW at 220/230 V AC 50/60 Hz (AC-3)11 kW at 380/400 V AC 50/60 Hz (AC-3), 11 kW at 415/440 V AC 50/60 Hz (AC-3)15 kW at 500 V AC 50/60 Hz (AC-3), 15 kW at 660/690 V AC 50/60 Hz (AC-3), 5.5 kW at 220/230 V AC 50/60 Hz (AC-3e)5.5 kW at 400 V AC 50/60 Hz (AC-4)
- Power Dissipation Per Pole
- 3.2 W AC-11.25 W AC-3, 1.25 W AC-3e
- Utilisation Category
- AC-3, AC-3e, AC-1, AC-4
- Certificate Agency
- UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
- [Ie] Rated Operational Current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Connections - Terminals
- control circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: 2 2.5-10 mm² - cable stiffness: flexible without cable endpower circuit: 1 1-10 mm² - cable stiffness: flexible with cable endpower circuit: 1 1.5-10 mm² - cable stiffness: solid without cable endpower circuit: 2 2.5-10 mm² - cable stiffness: solid without cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable endpower circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.16099369916532025, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.044581888190333124
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 37 kg CO2 eq., 37.09321621621622
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Contact Compatibility
- M4
- Fire Resistance
- 850 °C IEC 60695-2-1
- Inrush Power In W
- 5.4-5.4 W 20 °C)
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Returnability
- Yes
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 42 kg CO2 eq.
- Connections Terminals
- screw clamp terminals
- Pep Code
- ENVPEP110230EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 75
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 24 V24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.65 Mcycles 25 A AC-3 <= 440 V, 1.4 Mcycles 40 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V
Mechanical Robustnessvibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 8 Gn for 11 ms)
Mounting Supportplate, rail
Tightening Torquepower circuit 2.5 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage24 V
[Icw] Rated Short-time Withstand Current240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.4107168668267351, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.912955799545972
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1102030EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance2 mOhm - Ith 40 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability30 Mcycles
Operating Time63 ±15 % ms closing20 ±20 % ms opening
Pole Contact Composition3 NO
Product Or Component Typecontactor
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv5.9.4
Time Constant28 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current25 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh555.165
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal85 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In W5.4-5.4 W 20 °C
Package Weight(Lbs)586.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1102030EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Recycled Metal Content At Cr Level0 %
Carbon Footprint41.622464469944575
Environmental DisclosureENVPEP110230EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Permissible Ambient Air Temperature Around The Device-40-60 °C-40-60 °C60-70 °C with derating
Pep CodeENVPEP110230EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
