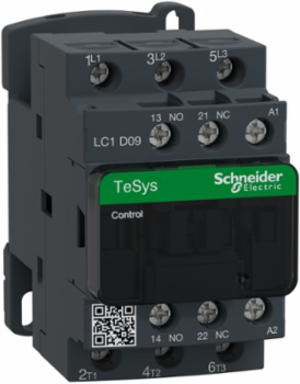

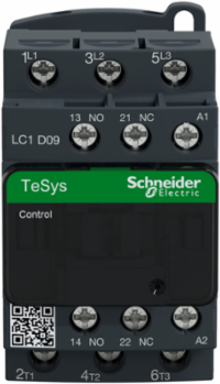

Schneider Electric LC1D09B7 TeSys Deca Contactor 3P 9A 24V AC Coil, 45 mm Width, IP20 Rating

  • MPN: LC1D09B7
  • PPN: SCH-LC1D09B7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $164.05

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

    Features

    • The Schneider LC1D09B7 is a 3-pole TeSys Deca contactor rated for 9 Amps (AC-3) and up to 25 Amps (AC-1), making it the ideal choice for controlling motors up to 4 kW (5.5 hp) at 400/415V. This ensures high-performance switching for inductive loads like industrial fans, small pumps, and conveyor systems while maintaining a compact footprint.
    • The "B7" designation indicates a 24V AC (50/60 Hz) control coil, the industry standard for safe, low-voltage automation. This allows the contactor to be triggered directly by control transformers or AC-output PLC modules without the cost and complexity of adding interposing relays.
    • Every LC1D09B7 comes factory-equipped with 1 NO (Normally Open) and 1 NC (Normally Closed) built-in auxiliary contacts. This integrated design allows you to monitor "Run" and "Fault" statuses simultaneously, saving you the expense of purchasing and installing separate add-on blocks.
    • Featuring heavy-duty screw clamp terminals, this contactor provides a high-torque connection that resists loosening from thermal cycling and mechanical vibration. This prevents the formation of electrical hot spots, ensuring long-term reliability and reducing the risk of downtime in demanding Canadian industrial plants.
    • The TeSys Deca range is fully modular, allowing for seamless snap-on installation of LRD thermal overload relays and front-mount auxiliary modules. This flexibility allows you to build a complete, space-saving motor starter assembly that clips directly onto a standard 35mm DIN rail.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Costa Rica, France, United Kingdom, Indonesia, Singapore, United States, ZZ
    Depth86 mm

    Complementary Attributes

    Control Circuit Voltage Limits
    0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
    Maximum Horse Power Rating
    2 hp at 230/240 V AC 50/60 Hz for 3 phase motors, 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors5 hp at 460/480 V AC 50/60 Hz for 3 phase motors7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
    Maximum Motor Phase Current
    9 A
    Minimum Switching Current
    5 mA for signalling circuit
    Rated Breaking Capacity
    250 A at 440 V for power circuit conforming to IEC 60947
    Irms Rated Making Capacity250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1
    Control Circuit TypeAC 50/60 Hz standard
    Maximum Operating Rate3600 cyc/h at 60 °C
    Minimum Switching Voltage17 V for signalling circuit

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Contactor Application
    resistive load, motor control
    Inrush Power In Va
    70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
    Mechanical Robustness
    vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms)
    Mounting Support
    rail, plate
    Tightening Torque
    control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
    Control Circuit Voltage
    24 V
    [Ie] Rated Operational Current
    9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    [Ui] Rated Insulation Voltage
    signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
    Non-overlap Time
    1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
    Carbon Footprint Of The Installation Phase [A5]
    0.1 kg CO2 eq., 0.05226784248176469
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    21 kg CO2 eq., 20.879531672955483
    Local Publishable Date
    2026-06-30
    Stocking Flag
    N
    Device Type
    LV equipment - LV contactor
    Traceability
    No
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Average Impedance
    2.5 mOhm - Ith 25 A 50 Hz for power circuit
    Compatibility Code
    LC1D
    Device Short Name
    LC1D
    Flame Retardance
    V1 conforming to UL 94
    Mechanical Durability
    15 Mcycles
    Operating Time
    12...22 ms closing4...19 ms opening
    Pole Contact Composition
    3 NO
    Product Or Component Type
    contactor
    Range Of Product
    TeSys Deca
    Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
    Software Version
    v6.2.4
    Total Lifecycle Carbon Footprint
    22 kg CO2 eq.
    Inf Motor Phase Current
    9 A
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
    Functional-unit Unit
    unit
    Energy Consumption On Product Lifetime In Kwh
    232.14
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    77 mm
    [Icw] Rated Short-time Withstand Current
    105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
    [Ue] Rated Operational Voltage
    power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
    Hold-in Power Consumption In Va
    7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
    Package Weight(Lbs)
    345.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Electrical Durability0.6 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 9 A AC-3 <= 440 V, 2 Mcycles 9 A AC-3e <= 440 V
    Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
    Motor Power Kw4 kW at 380/400 V AC 50/60 Hz (AC-3e), 4 kW at 415/440 V AC 50/60 Hz (AC-3e), 5.5 kW at 500 V AC 50/60 Hz (AC-3e), 5.5 kW at 660/690 V AC 50/60 Hz (AC-3e), 2.2 kW at 220/230 V AC 50/60 Hz (AC-3)4 kW at 380/400 V AC 50/60 Hz (AC-3), 4 kW at 415/440 V AC 50/60 Hz (AC-3)5.5 kW at 500 V AC 50/60 Hz (AC-3), 5.5 kW at 660/690 V AC 50/60 Hz (AC-3), 2.2 kW at 220/230 V AC 50/60 Hz (AC-3e)2.2 kW at 400 V AC 50/60 Hz (AC-4)
    Power Dissipation Per Pole1.56 W AC-10.2 W AC-3, 0.2 W AC-3e
    Utilisation CategoryAC-3, AC-3e, AC-1, AC-4
    Certificate AgencyUL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
    [Uc] Control Circuit Voltage24 V, 24 V AC 50/60 Hz
    Connections - Terminalspower circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: 2 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 1 1-4 mm² - cable stiffness: flexible with cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: 1 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endscrew clamp terminalspower circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
    Carbon Footprint Of The Distribution Phase [A4]0.14831843609127973, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3270606595083658
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1501004
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2538
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit
    Coil Technologywithout built-in suppressor module
    Contact CompatibilityM2
    Fire Resistance850 °C IEC 60695-2-1
    Heat Dissipation2-3 W at 50/60 Hz
    Number Of Poles3P
    Overvoltage CategoryIII
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTHIEC 60068-2-30
    ReturnabilityYes
    Signalling Circuit Frequency25...400 Hz
    Sustainable PackagingYes
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1501004EN
    Pep Verification Date2026-03-17
    Psr VersionPSR-0005-ed3-2023 06 06
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
    Recyclability Potential In %66
    Width Nominal45 mm
    [Ith] Conventional Free Air Thermal Current25 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490065

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1501004
    Eu Rohs Directive
    Compliant
    Operating Altitude
    0...9842.52 ft (0...3000 m)
    Packaging Without Single Use Plastic
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP1501004EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint22.407178611036894
    Environmental DisclosureENVPEP1501004EN
    Ip Degree Of ProtectionIP20 front face IEC 60529
    Packaging Made With Recycled CardboardYes
    Permissible Ambient Air Temperature Around The Device-40-60 °C-40-60 °C60-70 °C with derating
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2026-03-17
    Psr VersionPSR-0005-ed3-2023 06 06

    General Attributes

    Product Or Component Type
    contactor
    Range Of ProductTeSys Deca

    ETIM

    ETIM 8
    EC000066
    ETIM 9EC000066

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
