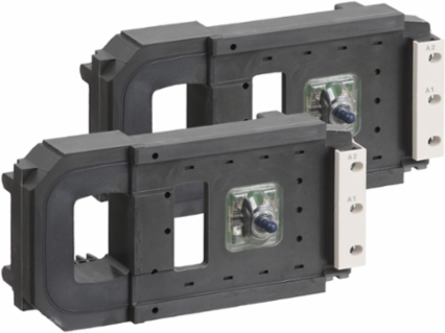

Schneider Electric LX1FX415 TeSys F Contactor Coil 415-480V AC, 600 Cycles/Hour, Set of 2
Schneider Electric LX1FX415 TeSys F Contactor Coil 415-480V AC, 600 Cycles/Hour, Set of 2
- MPN: LX1FX415
- PPN: SCH-LX1FX415
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4095.35/ EA
Description
TeSys F AC coil 415/440V 40-400Hz (voltage code N7/R7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F780. Set of 2 identical coils, to be connected in series. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 600 cycles/hour. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
- Quantity Per Set
- set of 2
Net Weight3 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.2...0.4 Uc 40...400 Hz 55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 44-44 W 40...400 Hz
Inrush Power In Va2100-2100 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-In Power Consumption In Va50-50 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Specifications
- Average Resistance
- 74.3 Ohm inrush 20 °C || 3340 Ohm holding 20 °C
- Control Circuit Type
- AC 40...400 Hz
- Product Or Component Type
- contactor coil
- Inductance Of Closed Circuit
- 2.8 H
- Operating Time
- 130...230 ms opening || 40...80 ms closing
- Device Short Name
- LX1FX
[Uc] Control Circuit Voltage415...480 V AC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate600 cyc/h 55 °C
Product CompatibilityLC1F780
Mechanical Durability5 Mcycles
