Schneider Electric VCFXGE4 Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for V02-V2

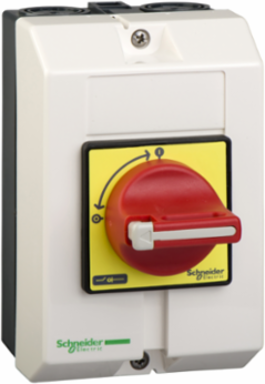

Empty enclosure,TeSys Control,red padlockable handle operator and yellow front plate,IP65,for V02-V2
  • MPN: VCFXGE4
  • PPN: SCH-VCFXGE4

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$43.74/ EA

Description

TeSys enclosed starters, empty enclosure for mounting a switch disconnector for main switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). to be equipped with a Vario switch body V02-V2 (to be ordered separately), with 4 possible add-on module attachments Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Specifications

Environment

Ip Degree Of Protection
IP65

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2211019
Toxic Heavy Metal Free
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions

Complementary

Height
180 mm
[Ithe] Conventional Enclosed Thermal Current
10 A || 20 A || 25 A || 16 A || 32 A
Net Weight
0.66 kg
Rotary Handle Padlocking
with
Depth
152 mm
Handle Front Plate Colouryellow
Handle Colourred
Environmental Characteristicstandard environment
Width157 mm

Specifications

Product Or Component Type
enclosure
Product Compatibility
V02...V2
RangeTeSys
Device Short NameVCFX
