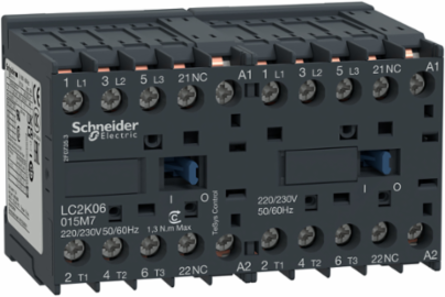

Schneider Electric LC2K06015M7 TeSys K Reversing Contactor, 3 Poles, 6A, 220-230V AC Coil
- MPN: LC2K06015M7
- PPN: SCH-LC2K06015M7
CAD
$189.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This reversing contactor by Schneider Electric is engineered for robust automation and control solutions, providing dependable operation with its three-pole design. Rated for a maximum current of 6A and equipped with a 220-230V AC coil, it is designed to efficiently manage motor control applications, allowing for seamless reversing of motor direction. Ideal for various industrial settings, the TeSys K series is known for its reliability and ease of integration into existing systems, making it an essential component for effective electrical control in automation projects.
Documentation & Downloads
Specifications
Additional
- Motor Power
- 1.5 kW (220-230 V AC 50/60 Hz), 2.2 kW (380-415 V AC 50/60 Hz), 3 kW (440-690 V AC 50/60 Hz)
- Rated Operational Voltage
- Power circuit 690 V AC 50/60 Hz, signalling circuit <= 690 V AC 50/60 Hz
- Auxiliary Contact Composition
- 1 NC
- Rated Breaking Capacity
- 110 A at 220-440 V, 80 A at 500 V, 70 A at 660-690 V (IEC 60947)
- Associated Fuse Rating
- 25 A gG at <= 440 V power circuit, 10 A gG signalling circuit
- Electrical Durability
- 1.3M cycles at 6 A AC-3, 0.05M cycles at 36 A AC-4
- Control Coil Voltage
- 220-230 V AC 50/60 Hz
- IP Degree of Protection
- IP20 VDE 0106
- Storage Temperature Range
- -50 to 80b0C (-58 to 176b0F)
- Height
- 58 mm (2.28 in)
- Depth
- 57 mm (2.24 in)
- Flame Retardance
- V1 UL 94
- Standards Compliance
- EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1
- Inrush Power
- 30 VA (at 20b0C)
- Mercury Free
- Yes
- Protective Treatment
- TC IEC 60068, TC DIN 50016
- Connections - Terminals
- Solder pins 0.035 mm
- Electrical Durability
- 1.3M cycles at 6A AC-3, 0.05M cycles at 36A AC-4
Rated Operational Current6 A at <= 440 V AC AC-3 and AC-3e for power circuit
Poles3P
Rated Making Capacity110 A AC for power and signalling circuit
Rated Short-Time Withstand Current90 A 1s, 85 A 5s, 80 A 10s, 60 A 30s, 45 A 1min at 50b0C power circuit, additional values for signalling circuit
Rated Insulation Voltage600 V UL, 690 V IEC 60947-4-1, 600 V CSA
Mechanical Durability5M cycles
MountingRail, Plate
Operating Temperature Range-25 to 50b0C (-13 to 122b0F)
Operating Altitude2000 m without derating
Width90 mm (3.54 in)
Net Weight0.39 kg (0.86 lb)
Safety Reliability LevelB10d = 1,369,863 cycles (nominal load), 20,000,000 cycles (mechanical)
Product CertificationsCB, CCC, UL, CSA, EAC, CE, UKCA
Hold-in Power Consumption4.5 VA (at 20b0C)
Insulation Resistance> 10 MOhm for signalling circuit
Maximum Operating Rate3600 cycles per hour
Interlocking TypeMechanical
RangeTeSys
