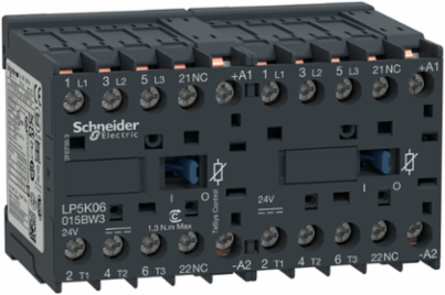

Schneider Electric LP5K06015BW3 TeSys K Reversing Contactor 3P 440V 6A 1NC 24V DC Low Consumption
- MPN: LP5K06015BW3
- PPN: SCH-LP5K06015BW3
CAD
$322.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The TeSys K Reversing Contactor from Schneider Electric is an essential component in automation and control applications, designed to facilitate efficient motor control. With three poles rated for 440V and a 6A capacity, this unit provides reliable performance for a variety of reversing motor applications. Its low consumption 24V DC control ensures energy efficiency while maintaining powerful operation. Engineered for durability and precision, this miniature contactor is an ideal choice for those looking to enhance their control systems with dependable and compact solutions.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 6 A at <= 440 V AC AC-3, AC-3e
- Rated Breaking Capacity
- 110 A at 220...230 V, 110 A at 380...415 V, 110 A at 440 V, 80 A at 500 V, 70 A at 660...690 V AC
- Rated Short-Time Withstand Current
- 90 A 50 °C - 1 s, 85 A 50 °C - 5 s, 80 A 50 °C - 10 s, 60 A 50 °C - 30 s, 45 A 50 °C - 1 min, 40 A 50 °C - 3 min
- Conventional Free Air Thermal Current
- 20 A (power circuit), 10 A (signalling circuit) at 50 °C
- Control Circuit Type
- DC low consumption
- Poles
- 3P
- Auxiliary Contact Composition
- 1 NC
- Associated Fuse Rating
- 25 A gG and 25 A aM at <= 440 V for power circuit; 10 A gG for signalling circuit conforming to IEC 60947 and VDE 0660
- Mounting Type
- Support Plate, Rail
- Width
- 90 mm (3.54 in)
- Net Weight
- 0.49 kg (1.08 lb)
- Degree of Protection
- IP20 VDE 0106
- Flame Retardance
- V1 UL 94, NF F 16-101, NF F 16-102
- Product Certifications
- CB, CCC, UL, CSA, EAC, CE, UKCA
- Mechanical Robustness
- Shocks: 6–15 Gn for 11 ms on X, Y, Z axes; Vibrations: 2–4 Gn, 5–300 Hz
- Electrical Durability
- 1.3 million cycles at 6 A AC-3/AC-3e <= 440 V; 50,000 cycles at 36 A AC-4 <= 440 V
- Maximum Operating Rate
- 3600 cycles per hour
- Ambient Air Temperature for Storage
- -50 to 80 °C (-58 to 176 °F)
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Minimum Switching Voltage
- 17 V for signalling circuit
- Coil Technology
- Built-in bidirectional peak limiting diode suppressor
- Hold-In Power Consumption
- 1.8 W at 20 °C (68 °F)
- Device Short Name
- LP5K
Motor Power1.5 kW 220...230 V AC, 2.2 kW 380...415 V AC, 3 kW 440...690 V AC 50/60 Hz
Rated Making Capacity110 A AC
Rated Operational VoltagePower circuit and signalling circuit 690 V AC 50/60 Hz
Control Circuit Voltage24 V DC
Operating Time10–20 ms coil de-energisation and NO opening; 30–40 ms coil energisation and NO closing
Power Pole Contact Composition3 NO
Auxiliary Contacts TypeInstantaneous 1 NC
Interlocking TypeMechanical
Height58 mm (2.28 in)
Depth57 mm (2.24 in)
MaterialNot specified
Protective TreatmentTC IEC 60068, TC DIN 50016
StandardsEN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1
RoHS ComplianceCompliant
Mechanical Durability5 million cycles
Safety Reliability LevelB10d = 1,369,863 cycles with nominal load
Ambient Air Temperature for Operation-25 to 50 °C (-13 to 122 °F)
Operating Altitude2000 m (6562 ft) without derating
Minimum Switching Current5 mA for signalling circuit
Non Overlap Distance0.5 mm (0.02 in)
Inrush Power1.8 W at 20 °C (68 °F)
Product TypeReversing contactor
Country of OriginFrance (FR)
