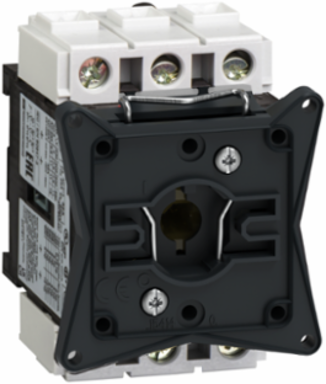

Schneider Electric V0 TeSys Vario 3 Pole Switch Body 25A 690V AC IP20

MPN: V0
PPN: SCH-V0

$63.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

V0 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 25A 690V, it is used in motor applications up to 7.5kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, United States

Depth	60 mm

Complementary Attributes

Rated Operational Power In W	5.5 kW 230...240 V AC-23A), 7.5 kW 400...415 V AC-23A), 11 kW 500 V AC-23A)11 kW 690 V AC-3), 15 kW 690 V AC-23A)4 kW 230...240 V AC-3)5.5 kW 400...415 V AC-3), 7.5 kW 500 V AC-3)

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Making Capacity	250 A 400 V AC-21A, 250 A 400 V AC-22A, 250 A 400 V AC-23A
Network Type	AC, DC
Connections - Terminals	power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
Carbon Footprint Of The Distribution Phase [A4]	0.03897335354520308, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.017535493953134616
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	29 kg CO2 eq., 28.971796700100345
Local Publishable Date	2026-06-27
Stocking Flag	Y
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1936
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	V
Device Short Name	V
Fire Resistance	960 °C IEC 60695-2-1
Mechanical Durability	100000 cycles
Network Frequency	50/60 Hz
Performance Level	high performance
Product Name	TeSys VARIO
Protective Treatment	TC
Returnability	Yes
Suitability For Isolation	yes
Tightening Torque	power circuit 2.1-2.1 N.m screw clamp terminals
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2211006EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Czech Republic, CZ
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %	57
Width Nominal	55 mm
[Icw] Rated Short-time Withstand Current	300 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current	25 A
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz
Halogen-free Status	Halogen free product
Package Weight(Lbs)	174.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mounting Support	symmetrical rail, plate
Certificate Agency	UL, CSA, GL, UKCA, CCC
Rated Conditional Short-circuit Current	10 kA 400 V 25 A aM, 10 kA 400 V 25 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.5303688605432406, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.2633669206730842
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	3 NO
Electrical Durability	100000 cycles AC-2130000 cycles DC-1...5
Intermittent Duty Class	30
Mechanical Robustness	vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	switch body
Range	TeSys
Software Version	v6.1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	31 kg CO2 eq.
Thermal Current 3	25 A
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	433.62
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; France, FR
Height Nominal	74 mm
[Icm] Rated Short-circuit Making Capacity	1 kA 400 V at Ipeak
[Ie] Rated Operational Current	14.5 A AC-23 Ue: 400 V
[Ithe] Conventional Enclosed Thermal Current	20 A
[Uimp] Rated Impulse Withstand Voltage	8 kV
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908160

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211006EN
Halogen Content Performance	Halogen free product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-20-50 °C, -20-50 °C
Halogene Performance	Halogen free product
Toxic Heavy Metal Free	Yes
Carbon Footprint	30.822041328815008
Eu Rohs Directive	Compliant
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2211006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
