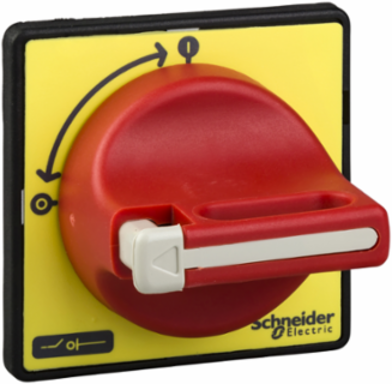

Schneider Electric KCF1PZ TeSys Vario Rotary Handle, IP65 Rated, 60x60 mm, 1-3 Padlocking
- MPN: KCF1PZ
- PPN: SCH-KCF1PZ
CAD
$30.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a red handle and yellow front plate 60x60mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Features
- Custom-engineered to serve as an external control interface, this operator functions as a high-visibility rotary handle assembly. It is optimized for main electrical isolation and Emergency Stop (E-Stop) applications, allowing field technicians to safely disconnect power to industrial control panels or localized factory machinery from the outside of the enclosure.
- Belonging to the premium TeSys Vario and Mini-Vario product families, this accessory features a versatile actuation footprint. It is engineered to control compact VN12, VN20, and V02 through V2 3-pole switch-disconnector bodies, delivering a uniform mechanical linkage across your varying starter frames.
Documentation & Downloads
Specifications
Key Specifications
- Handle Colour
- red
- Range
- TeSys
- Device Short Name
- KCF1
Product Or Component Typerotary handle
Product CompatibilityVN20 || V02...V2 || VN12
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Handle Front Plate Colour
- yellow
- Marking
- 0 - 1
- Net Weight
- 0.075 kg
Height60 mm
Fixing Modeby 4 screws
Base Dimension60 x 60 mm
Width60 mm
Environment
- Ip Degree Of Protection
- IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
