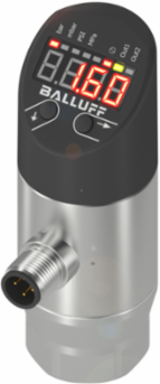

Balluff BSP B100-EV009-P00S2B-S4-Z03 Pressure Sensor with Display, 0-100 bar, IP67, Stainless Steel Housing
- MPN: BSP B100-EV009-P00S2B-S4-Z03
- PPN: BAL-BSP00YA
CAD
$646.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor with Display, 0-100 bar, IP67, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-100 bar
- Operating Voltage
- 18-30 VDC
- Ambient Temperature
- -40-85 °C
- Process Connection
- G 1/4" (DIN 3852)
- Analog Output
- Analog voltage/current selectable 4-20 mA / 0-10 V
- Material
- Stainless Steel (1.4301), High-density polyethylene
- Connection
- Connector, M12x1 Male, 4-pin
- Weight
- 230 g
- Overload Pressure
- 200 bar
- Resolution
- ≤ 14 bits
- Sampling Rate
- 1 ms
- Current Draw Max
- 50 mA
- Load Cycles
- 100 million
- Protection Class
- III
- Temperature Coefficient
- ≤ ±0.3 % FSO/10K
Accuracy±0.5 % FSO BFSL
Media Temperature-40-125 °C
IP RatingIP67
Switching Output2x PNP/NPN NO/NC switchable
InterfaceIO-Link 1.1
Process Connection MaterialStainless steel (1.4301)
Housing MaterialStainless steel (1.4301), High-density polyethylene
Burst Pressure300 bar
Repeat Accuracy≤ ±0.2 % FSO
Response Time13 ms
Output Current Max150 mA
Switching Frequency170 Hz
Switching Cycles Min100 million
Storage Temperature Range-40-85 °C
MTTF (40 °C)267 a
