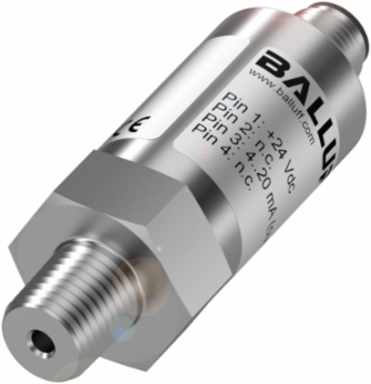

Balluff BSP B020-FV004-A06A1A-S4 Pressure Sensor 0-20 bar, IP67, Stainless Steel Housing
- MPN: BSP B020-FV004-A06A1A-S4
- PPN: BAL-BSP00HE
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor 0-20 bar, IP67, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-20 bar
- Burst Pressure
- 70 bar
- Operating Voltage
- 8-32 VDC
- Output
- Analog, current 4-20 mA
- Media Temperature
- -40 to 125 °C
- Compensation Temperature Range
- -25 to 85 °C
- Process Connection
- 1/4" NPT
- Process Connection Material
- Stainless steel (1.4301)
- Material Gasket
- Fluoroelastomer
- Connector
- M12x1 Male, 4-pin, A-coded
- Polarity Reversal Protection
- Yes
- Tightening Torque
- 30 Nm
- Sampling Rate
- 1 ms
- Approval/Conformity
- CE, cULus, WEEE
Accuracy±0.5 % FSO BFSL
Overload Pressure50 bar
Current Draw Max25 mA
Ambient Temperature Range-40 to 85 °C
Storage Temperature Range-40 to 85 °C
Weight120 g
Housing MaterialStainless steel (1.4301)
Material Connector HousingNickel-plated Brass
Measuring Cell MaterialCeramic Al2O3
Electrical Version2-wire
Short-circuit ProtectionYes
Resolution≤ 14 bits
Temperature Coefficient≤ ±0.5 % FSO/10K
