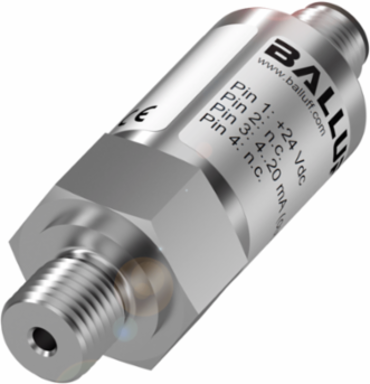

Balluff BSP B010-DV004-A06A1A-S4 Pressure Sensor, 0-10 Bar, IP67, Stainless Steel Housing
- MPN: BSP B010-DV004-A06A1A-S4
- PPN: BAL-BSP00H1
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-10 Bar, IP67, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-10 bar
- Burst Pressure
- 35 bar
- Analog Output
- 4-20 mA
- Current Draw Max
- 25 mA
- IP Rating
- IP67
- Ambient Temperature
- -40 to 85 °C
- Housing Material
- Stainless steel (1.4301)
- Process Connection Material
- Stainless steel (1.4301)
- Gasket Material
- Fluoroelastomer
- Compliance
- CE, cULus, WEEE
Accuracy±0.5 % FSO BFSL
Overload Pressure20 bar
Operating Voltage8-32 VDC
Load Cycles100 million
ConnectionConnector, M12x1-Male, 4-pin
Media Temperature-40 to 125 °C
Process ConnectionG 1/4" (DIN 3852)
Connector Housing MaterialNickel-plated brass
Measuring Cell MaterialCeramic Al2O3
