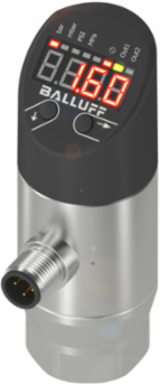

Balluff BSP B400-EV009-P00S2B-S4-003 Pressure Sensor, 0-400 bar, IP67, Stainless Steel Housing
- MPN: BSP B400-EV009-P00S2B-S4-003
- PPN: BAL-BSP00YJ
CAD
$603.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-400 bar, IP67, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-400 bar
- Analog Output
- 4-20 mA / 0-10 V selectable
- Accuracy
- ±0.5 % FSO BFSL
- Process Connection
- G 1/4" (DIN 3852)
- Housing Material
- Stainless steel (1.4301), PE (High-density polyethylene)
- Ambient Temperature Range
- -40 to 85 °C
- Connection
- Connector, M12x1-Male, 4-pin
Operating Voltage18-30 VDC
Switching Output2x PNP/NPN NO/NC switchable
IP RatingIP67 when threaded in
Process Connection MaterialStainless steel (1.4301)
InterfaceIO-Link 1.1
Media Temperature Range-40 to 125 °C
Approval/ConformityCE, cULus, WEEE
