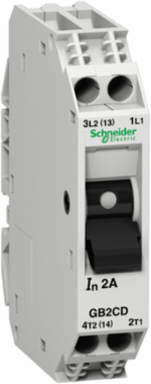

Schneider Electric GB2CD16 TeSys GB2 Circuit Breaker, 1P+N, 10A, 1.5kA Breaking Capacity
- MPN: GB2CD16
- PPN: SCH-GB2CD16
- UNSPSC: 39121633
CAD
$139.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys GB circuit breaker, 2 poles (1P+N), 10A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 138A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 10A/24V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA).
Features
- Engineered with a precise 10 A operational current rating and advanced thermal-magnetic trip technology, this TeSys GB2 supplemental protector safeguards industrial equipment control circuits against short circuits and prolonged overloads. Its robust magnetic tripping threshold of 138 A ensures it reliably absorbs brief, harmless inrush currents from contactor coils and control transformers, preventing unnecessary machine downtime while ensuring rapid fault isolation.
- Designed for multi-network compatibility, this circuit breaker supports operational voltages up to 250 V AC (50/60 Hz) under IEC standards, 277 V AC under UL 1077/CSA C22.2, and up to 48 V DC loads. This dual AC/DC utilization eliminates the logistical headache of stocking separate components for different panel architectures, allowing you to streamline inventory across varying factory floor applications.
- Featuring a highly compact 1P + N (single-pole plus neutral) configuration, this device packs comprehensive circuit disruption into an ultra-slim 15 mm frame width. By integrating the line protection and neutral isolation into a single housing, it frees up critical enclosure real estate, allowing industrial panel builders to compress their terminal layouts without sacrificing safety.
- Designed for swift, tool-free installation, the integrated mounting clips allow the unit to snap directly onto standard 35 mm symmetric DIN rails or mount firmly onto Telequick plates. It is engineered to perform optimally in both vertical and horizontal mounting orientations, giving you full layout flexibility when retrofitting cramped enclosures or upgrading modular control assemblies.
- Fully certified to global standards including UL 1077 (Supplementary Protectors), CSA C22.2 No 235, and CE/IEC 60947-2 compliance, this circuit breaker guarantees code-compliant integration into industrial panels across Canada, the US, and Europe. Its IP20 finger-safe housing prevents accidental contact with live electrical elements, ensuring a safer troubleshooting experience for plant maintenance electricians.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|---|
| Depth | 67 mm |
| Weight | 63 g |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 250 V AC 50/60 Hz IEC 60947-2, 277 V AC 60 Hz CSA C22.2 No 235, 277 V AC 60 Hz UL 107748 V DC |
|---|---|
| Ics Rated Service Short Circuit Breaking Capacity | 75 % 230/240 V AC 50/60 Hz IEC 60947-2 |
| Line Rated Current | 10 A |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 4 kV IEC 60947-2 |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mechanical Robustness | shocks 22 Gn for 20 ms IEC 60068-2-27, vibrations 5 Gn, 5...110 Hz IEC 60068-2-6 |
| Mounting Support | plate, rail |
| Utilisation Category | category A IEC 60947-2DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1 |
| Certificate Agency | UL, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.15772915525205403, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.4 kg CO2 eq., 0.4138347258683495 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | GB2 |
| Device Application | control |
| Electrical Durability | 8000 cycles |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Mechanical Durability | 8000 cycles |
| Network Frequency | 50/60 Hz IEC 60947-2 |
| Number Of Poles | 1P + N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Quantity Per Set | set of 6 |
| Returnability | No |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 3 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Height Nominal | 74 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Protect the installation against overloads and short circuits and protect people and premises at risk of fire or explosion against insulation defects in a circuit with rated voltage 250V (Ue), rated current 2A (In), with 1P+N poles, a rated breaking capacity 15kA (Icn), and, in the Industrial application areas, while protecting them against the penetration of solid objects and liquids (IP20) in accordance with the standard IEC 62262, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 26.28 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Position | horizontal, vertical |
| Poles Description | 1P + N |
| Connections Terminals | connector 2 0.75-2.5 mm²flexible with cable endconnector 1 0.75-6 mm²solid without cable end, connector 2 0.75-4 mm²solid without cable endconnector 1 0.75-4 mm²flexible with cable end |
| Carbon Footprint Of The Distribution Phase A4 | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.004250779378920532 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 2 kg CO2 eq., 2.363720566749677 |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | toggle |
| Device Short Name | GB2 |
| Energy Efficiency Optimized | False |
| Magnetic Tripping Current | 138-138 A |
| Mounting Mode | by clips |
| Network Type | AC/DC |
| Power Dissipation Per Pole | 2 W |
| Product Name | TeSys GB2 |
| Protective Treatment | TC |
| Range | TeSys |
| Software Version | v6.2.4 |
| Tightening Torque | 1.2 N.m connector |
| Trip Unit Technology | thermal-magnetic |
| R Magnetic Tripping Current | 138-138 A |
| Data Source | extrapolated product |
| Width Nominal | 15 mm |
| Customs Code | 8536200020 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 36 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 2.9395352272490007 |
| Ambient Air Temperature For Operation | -20-60 °C-20-60 °C |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2306023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Storage | -40-80 °C, -40-80 °C |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| 9 Mm Pitches | 2 |
| Environmental Disclosure | ENVPEP2306023EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-04-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
ETIM
| ETIM 8 | EC000042 |
|---|---|
| ETIM 10 | EC000042 |
| ETIM 9 | EC000042 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
