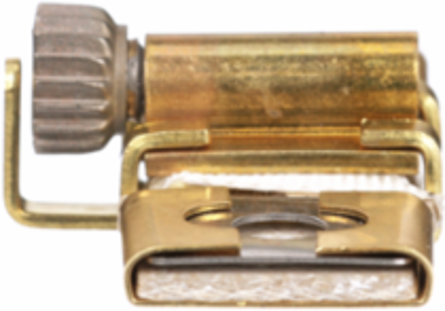

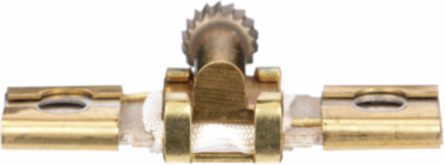

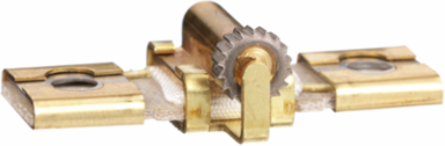

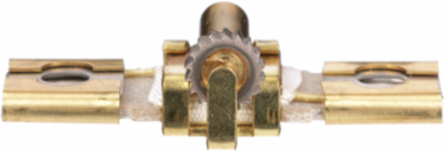

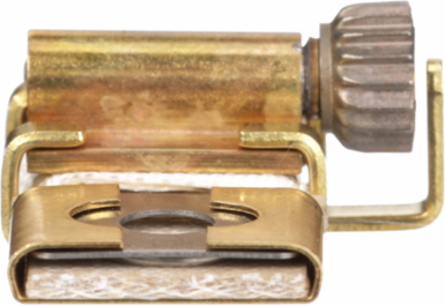

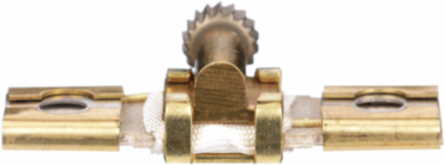

Square D B3.70 Thermal Unit, Type S, Class 20, Melting Alloy, 30 Amps, 600 V
- MPN: B3.70
- UPC: 785901587385
- PPN: SCH-B3.70
CAD
$49.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder will accept class M fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 100,000 Amp. This fuse holder is UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30A
- Thermal Overload Type
- Melting Alloy
- Fuse Type Compatibility
- Class H, R, CC, M, J
- Fuse Holder Poles
- 3
- Fuse Clip Material
- Tin Plated Copper Alloy
- Pvc Free
- Yes
- China Rohs Regulation
- Out of China RoHS scope
- Eu Rohs Directive
- Out of EU RoHS scope
Voltage600V
Motor Tripping Class20
AIC Rating100,000 Amp
Wire Connector Size14 to 10 AWG (2.5 to 4 mm²)
Fuse Holder Base MaterialHigh Impact Thermoplastic
Reach RegulationContains SVHC above threshold
Range Of ProductB
Country of OriginMexico
