Weidmuller 1774410000 THM WO 33.5/93.1 GE
- MPN: 1774410000
- PPN: WDM-1774410000
CAD
$828.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

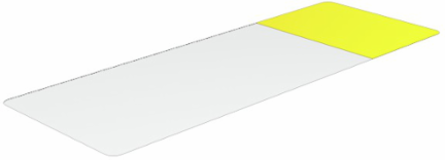

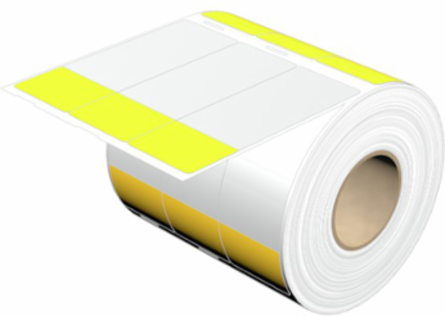

THM, Conductor and cable markers, 8 - 21.7 mm, 33.5 x 93.1 mm, yellow
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Halogen
- No
- Material colour according to resistance code
- 4
- Operating temperature range
- -40...150 °C
- Type of printing
- neutral
- Version
- Self-adhesive
- compatible printer
- 2430920000 2448870000
Colouryellow
MaterialPolyester film
Number per roll500
Size of labelling field33.5 x 25 mm
UL 94 flammability ratingV-0
Width93.1 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 93.1 mm
- Height
- 33.5 mm
- Depth
- 0.025 mm
- Net weight
- 284 g
Width (inches)3.665 inch
Height (inches)1.319 inch
Depth (inches)0.001 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 8 - 21.7 mm
- Conductor O.D., min.
- 8 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.21.7 mm
Conductor cross-section, max.400 mm²
HalogenNo
