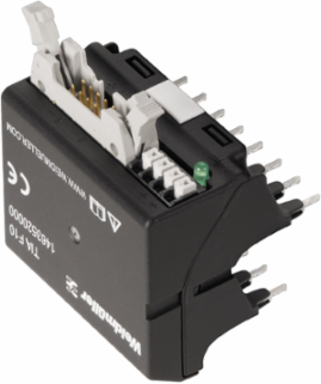

Weidmuller 1463520000 TIA F10

MPN: 1463520000
PPN: WDM-1463520000

$105.61

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

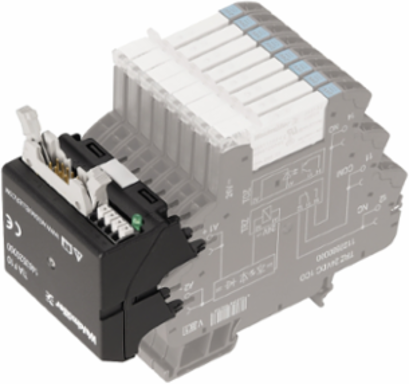

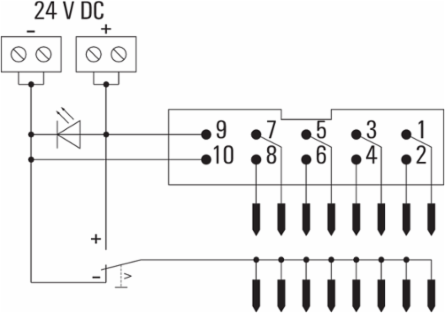

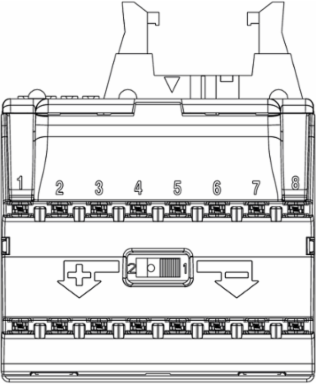

TERMSERIES, Adapter, 10-pole plug according to DIN EN 60603-13, long locking lever, Number of signal paths: 8, Rated voltage : 24 V DC, Rated current (per signal path): 125 mA

Documentation & Downloads

Specifications

General Data

Colour	black

UL 94 flammability rating	V-0

Connection Data (Supply)

Wire connection method	PUSH IN
Clamping range, rated connection, min.	0.13 mm²
Blade size (supply)	0.6 x 3.5 mm

Number of terminals	4 (+,+,−,−)
Clamping range, rated connection, max.	1.5 mm²

Approvals

Approvals	CE, CULUS, DNV GL
UL File Number Search	E141197

ROHS	Conform

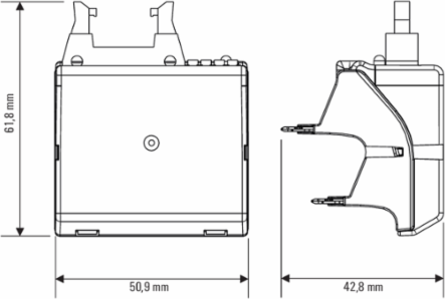

Dimensions And Weights

Width	51 mm
Height	43 mm
Depth	62 mm
Net weight	49.35 g

Width (inches)	2.008 inch
Height (inches)	1.693 inch
Depth (inches)	2.441 inch

Supply

Voltage supply	24 V DC ± 20 %

Status display	Green LED

Classifications

ETIM 6.0	EC002780
eClass 9.0	27-14-11-52
eClass 10.0	27-14-11-52

ETIM 7.0	EC002780
eClass 9.1	27-14-11-52

Connection Data (Signal)

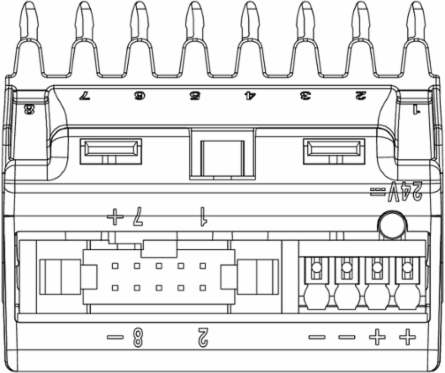

Plug type	10-pole plug according to DIN EN 60603-13, long locking lever

Signals

Current (per signal path), max.	1 A
Rated current (per signal path)	125 mA
Total current of all signals, max.	1 A

Number of signal paths	8
Rated voltage	24 V DC
Voltage, max.	30 V DC

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Insulation Coordination

Rated voltage	32 V
Surge voltage category	III
Protection degree	IP20 in installed state

Pollution severity	2
Impulse withstand voltage	1.5 kV

Temperatures

Humidity	5...95% (indoor), Tu = 40°C, without condensation
Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...85 °C
