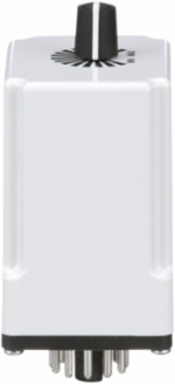

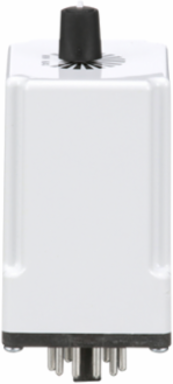

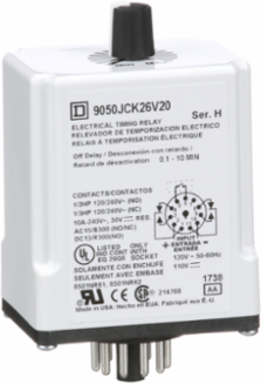

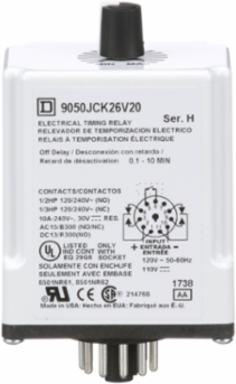

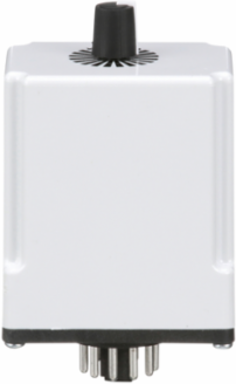

Square D 9050JCK26V20 Harmony Off Delay Timer 0.1-10 Min, 10A, 240V AC, DPDT
- MPN: 9050JCK26V20
- UPC: 785901032663
- PPN: SCH-9050JCK26V20
CAD
$166.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony Off Delay Timer 0.1-10 Min, 10A, 240V AC, DPDT
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth104 mm
Complementary Attributes
- Line Rated Current
- 10 A
Maximum Switching Voltage240 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Time Delay Range
- 0.1...10 min, 0.1...10 min
- Certificate Agency
- UL Recognized, CE, UL Listed
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0713128548, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0015573234, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 49 kg CO2 eq., 48.5228571429
- Local Publishable Date
- 2026-03-25
- Future Imap
- 92.43
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506023EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Contacts Material
- silver nickel
- Mounting Support
- socket
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- 9050JCK
- Shape Of Pin
- tubular
- Sustainable Packaging
- No
- Time Delay Type
- off-delay
- Pep Code
- ENVPEP2506023EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: US
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Height Nominal
- 61 mm
- Hold-in Power Consumption In Va
- 2-2 VA
- Package Weight(Lbs)
- 136.078 g
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 614
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Circuit Voltage 12120 V AC, 110 V DC
[Uc] Control Circuit Voltage120 V AC, 110 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0750183652
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.5161759858
Local Data StatusPublishable
Return IndicatorY
Future Msrp103.16
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition2 NO + 2 NC
Pin Number11
Product Or Component Typetimer
ReturnabilityYes
Software VersionEIME v5.7.0.4
Switch FunctionDPDT
Total Lifecycle Carbon Footprint50 kg CO2 eq.
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control an event based on time. The contacts switch ON or OFF before or after some period of time to control automation industrial system. during 20 years with a 100% use rate, in compliance with French standard.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh70.08
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Width Nominal43 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]614
Environment Attributes Main
- Ambient Air Temperature For Operation
- -18-150 °F, -18-150 °F
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 50.1869216721
- Environmental Disclosure
- ENVPEP2506023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506023EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Product Compatibility8501NR61, 8501NR62
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2506023EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- timer
Range Of Product9050JCK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
