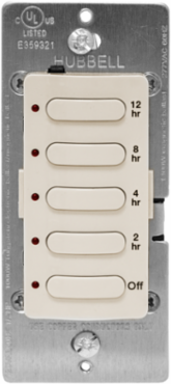

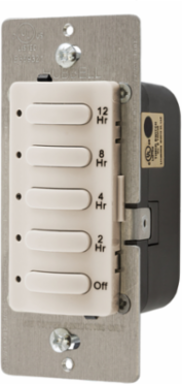

Bryant DT5012LA Timer Switch, Single Pole, 12 Hour, 8.3A 120/277V AC, Light Almond
- MPN: DT5012LA
- UPC: 783585256450
- PPN: HBL-DT5012LA
- UNSPSC: 39122208
CAD
$83.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Timer Switches, Single Pole, 8.3A120/277V AC, 12 Hour Delay Time Out, Light Almond
Features
- 12 hour timer
- Pre-set 5 button selection with permanent time markings
- Manual override to OFF
- Alert to OFF function - red LED will flash during the final 30 seconds
- Designed for use on 120 or 277V AC circuits
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.81 in x 1.75 in x 2.27 in
- Humidity
- 20% to 90% non-condensing relative humidity
- Industry Standard(s)
- cULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
- Performance
- Controls - 5 button selection - Preset time selection;Controls - LED Indicators - Illuminates once time is selected;Controls - OFF Switch - 6 seconds to 20 minutes (default set to 10 minutes);Electrical - Load Capacity - 120VAC 600W Incandescent, 5A Ballast, 5A CFL/LED 277V, Horsepower rating 1/6;Environmental - Operating Temperature - 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour;Environmental - Storage - -40°F to 150°F (-40°C to 65°C), 20% to 90% non condensing relative humidity
- Operating Temperature
- 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
- Standard
- cULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
- Type
- 12 Hours
- Wattage
- 1000/1400 W
- Width
- 1.75 in
- Connectivity
- Wire Leads
- Wire Length
- 6 in
- Description - Invoice
- TIMER 12 HR, 8.3A 120/277V , LT ALM
- Harmonization Code
- 9107008000
- MSDS Flag
- No
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 18.700 lb.
- Lowest Level UOM
- Each
ColorLight Almond
Height2.27 in
IndicatorIlluminates once time is selected
Length3.81 in
Storage Temperature Range-40°F to 150°F (-40°C to 65°C)
Size3.81 in x 1.75 in x 2.27 in
Timing RangeOFF, 2, 4,8, 12 hours
Voltage Rating120/277 VAC
Voltage Rating Description120/277V AC
General Literature Asset 1 Display TextResidential Catalog
ControlPre-Set 5 Button Selection
Wire Size#14 AWG
Freight Class Code06168002
Image Actual Or RepresentativeA
Indicator(s) TypeRed LED
SeriesFixed Countdown
BOX SIZE4.900x10.800x5.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585256450
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
