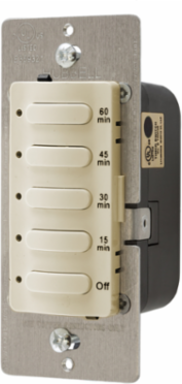

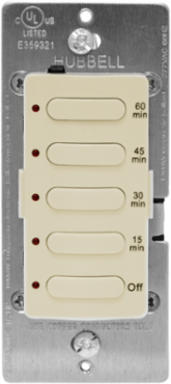

Bryant DT5060I Timer Switch, 60 Minute Delay, 8.3A 120/277V AC, Ivory, Compact Design
Bryant DT5060I Timer Switch, 60 Minute Delay, 8.3A 120/277V AC, Ivory, Compact Design
- MPN: DT5060I
- UPC: 783585256436
- PPN: HBL-DT5060I
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.89/ EA
Description
Timer Switches, Single Pole, 8.3A120/277V AC, 60 Minute Delay Time Out, Ivory
Features
- 60 minute timer
- Pre-set 5 button selection with permanent time markings
- Manual override to OFF
- Alert to OFF function - red LED will flash during the final 30 seconds
- Designed for use on 120 or 277V AC circuits
Specifications
Specifications
- Color
- Ivory
- Dimensions
- 3.81 in x 1.75 in x 2.27 in
- Height
- 2.27 in
- Indicator
- Illuminates once time is selected
- Length
- 3.81 in
- Storage Temperature Range
- -40°F to 150°F (-40°C to 65°C)
- Size
- 3.81 in x 1.75 in x 2.27 in
- Timing Range
- OFF, 15, 30, 45, 60 minutes
- Voltage Rating
- 120/277 VAC
- Voltage Rating Description
- 120/277V AC
- Connectivity
- Wire Leads
- Wire Length
- 6 in
- Description - Invoice
- TIMER 60MIN, 8.3A 120/277V , IVORY
- Harmonization Code
- 9107008000
- MSDS Flag
- No
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.5 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 15.000 lb.
- Lowest Level UOM
- Each
Country of OriginCN
Each - Width2.500 in
Humidity20% to 90% non-condensing relative humidity
Industry Standard(s)cULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
PerformanceControls - 5 button selection - Preset time selection;Controls - LED Indicators - Illuminates once time is selected;Controls - OFF Switch - 6 seconds to 20 minutes (default set to 10 minutes);Electrical - Load Capacity - 120VAC 600W Incandescent, 5A Ballast, 5A CFL/LED 277V, Horsepower rating 1/6;Environmental - Operating Temperature - 32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour;Environmental - Storage - -40°F to 150°F (-40°C to 65°C), 20% to 90% non condensing relative humidity
Operating Temperature32°F to 122°F (0°C to 50°C) with rate of change not exceeding 20°F(11°C) per hour
StandardcULus Listed To UL60730-1 And UL60730-2;Meets ASHRAE 90.1, and CEC Title 24 Compliant
Type60 Minutes
Wattage1000/1400 W
Width1.75 in
ControlPre-Set 5 Button Selection
Wire Size#14 AWG
Freight Class Code06168002
Image Actual Or RepresentativeA
Indicator(s) TypeRed LED
SeriesFixed Countdown
BOX SIZE4.900x10.700x5.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585256436
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
