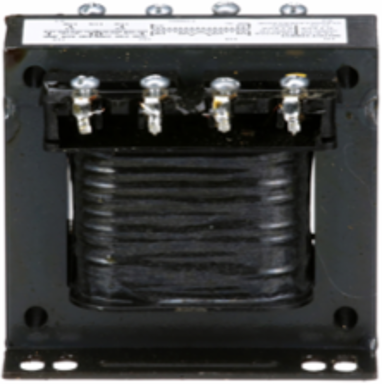

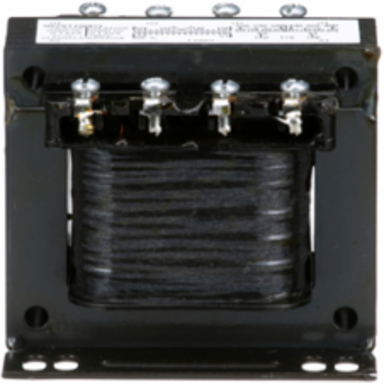

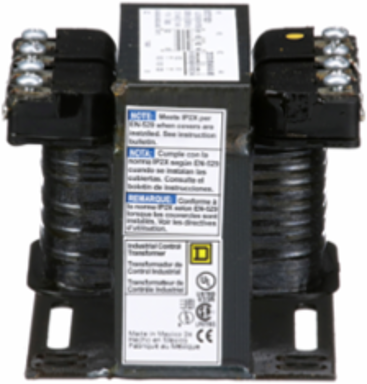

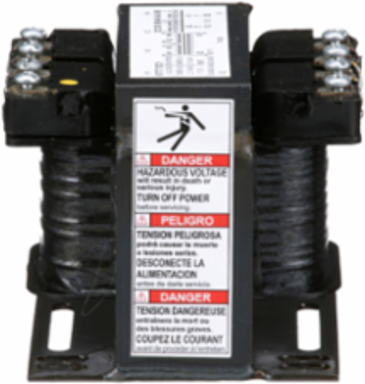

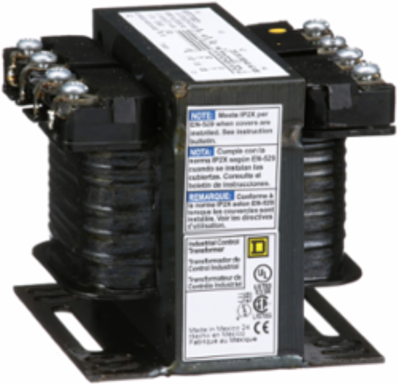

Square D 9070T100D1 Transformer 100VA, 1 Phase, 240x480V Primary, 120V Secondary, 55C Rise

MPN: 9070T100D1
UPC: 785901904649
PPN: SCH-9070T100D1

$102.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 240x480V primary voltage and 120V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

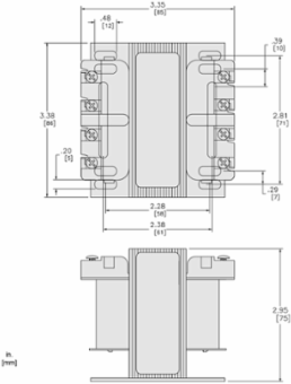

Depth	3.34 in

Complementary Attributes

Rated Power In Va	100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE

Important Information Attributes

Certificate Agency	UL listed file E61239, CSA file LR37055 guide 184-N-90
Local Publishable Date	2026-06-29
Stocking Flag	N
Device Type	Transformer - dry
Traceability	No
Average Life Duration	25 year(s)
Weee Product Category	4
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Electrical Connection	screw clamp terminals
Insulation Temperature	105 °C
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	T
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	3.38 in
Package Weight(Lbs)	1.935 kg
Warranty (In Months)	18

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	No
Product Kit Identifier	N
Energy Efficiency Optimized	False
Material	copper: winding

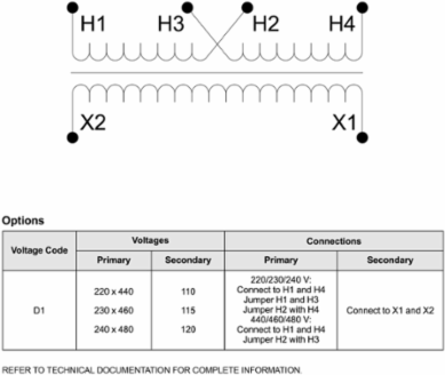

Primary Voltage	240 x 480 V 120 V230 x 460 V 115 V220 x 440 V 110 V
Product Or Component Type	Industrial Control Transformer
Returnability	Yes
Temperature Rise	55 °C
Height Nominal	2.89 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504314065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	FSC1

Take Back	No
Mercury Free	Yes
Nema Degree Of Protection	not rated (open device)
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
