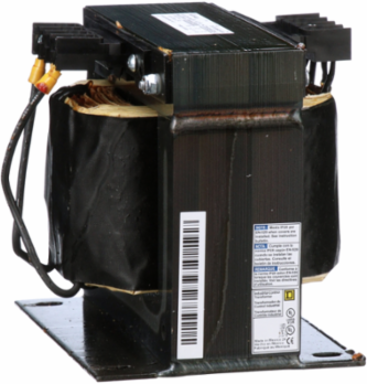

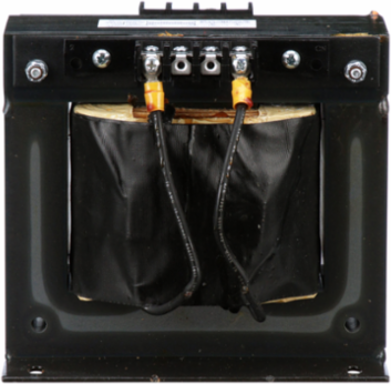

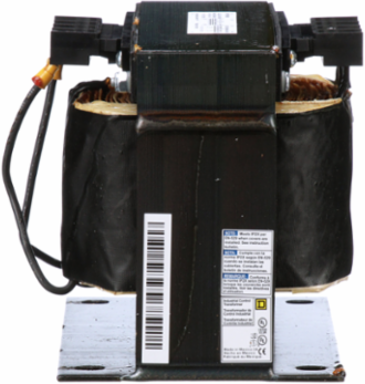

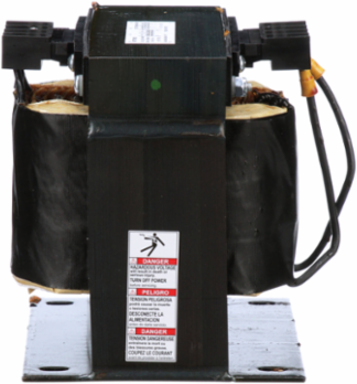

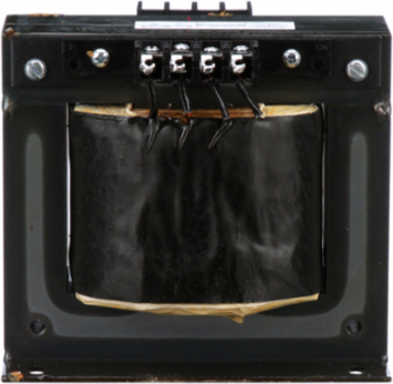

Square D 9070T1500D1 Industrial Control Transformer 1500VA 1 Phase 240x480V Primary 120V Secondary
- MPN: 9070T1500D1
- UPC: 785901876021
- PPN: SCH-9070T1500D1
CAD
$926.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 1500VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. This transformer complies to UL, CE & CSA standards. This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product comes with an 18 month warranty.
Features
- The Schneider Electric Square D 9070T1500D1 features a flexible multi-tap primary voltage configuration (240x480V, 230x460V, or 220x440V) that steps down to a standard 120V, 115V, or 110V secondary output. This ensures seamless physical and electrical compatibility with standard North American and global power supplies, allowing you to power 120V control circuits, relays, and PLCs directly from your high-voltage plant mains without needing separate power drops.
- Engineered with a robust 1500 VA (1.5 kVA) continuous power rating (1000 VA CE rated), this Type T industrial control transformer is specifically optimized with low-impedance copper windings to manage severe momentary inrush currents. By preventing significant voltage drops during device startup, it eliminates contactor chattering and erratic PLC resets, ensuring maximum system uptime and reliable machine performance.
- Built with a high-grade Class 180°C (356°F) insulation system and a rated 115°C temperature rise, this open-frame core-and-coil transformer safely dissipates heat under heavy duty cycles. The premium solid copper windings ensure superior conductivity and thermal stability, preventing premature insulation breakdown and extending the operational life of your control panel even in demanding high-ambient industrial environments.
- Measuring a compact 6.17 inches high, 7.06 inches wide, and 5.92 inches deep, the 9070T1500D1 minimizes footprint requirements inside crowded electrical enclosures. It features standardized slotted mounting feet (0.56 in times 0.28 in) for fast, straightforward panel mounting, making it an ideal drop-in replacement for worn-out control power transformers (CPTs) in conveyor systems, packaging machinery, and automotive paint lines.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
Complementary
- Height
- 6.17 in
- Material
- copper: winding
- Rated Power In Va
- 1500 VA UL || 1500 VA CSA || 1500 VA NOM || 1000 VA CE
- Depth
- 5.92 in
- Primary Voltage
- 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
Temperature Rise115 °C
Electrical Connectionscrew clamp terminals
Width7.06 in
Product CompatibilityFSC2
Network Number Of Phases1 phase
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 180 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
