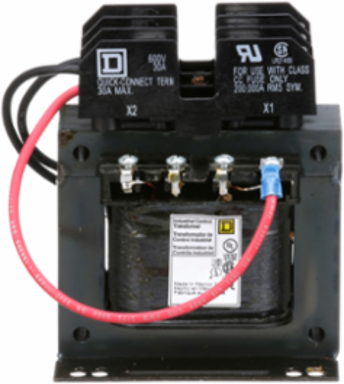

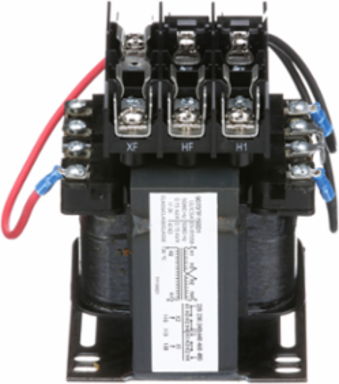

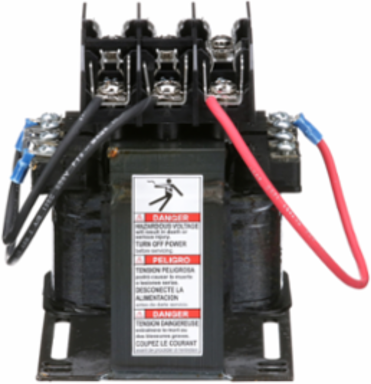

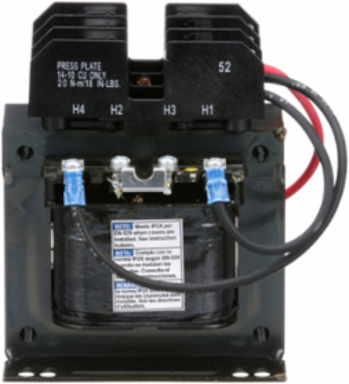

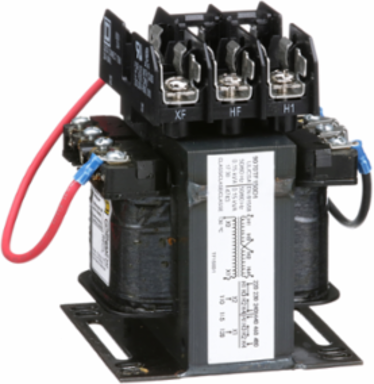

Square D 9070TF150D1 Industrial Control Transformer 150VA, 1 Phase, 240x480V/120V, 55 C Rise
- MPN: 9070TF150D1
- UPC: 785901904793
- PPN: SCH-9070TF150D1
CAD
$177.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Industrial Control Transformer 150VA, 1 Phase, 240x480V/120V, 55 C Rise
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

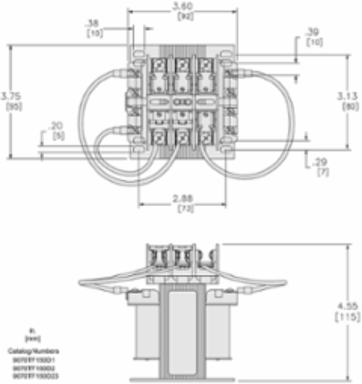

Depth3.59 in
Complementary Attributes
- Rated Power In Va
- 150 VA UL, 150 VA CSA, 150 VA NOM, 150 VA CE
Important Information Attributes

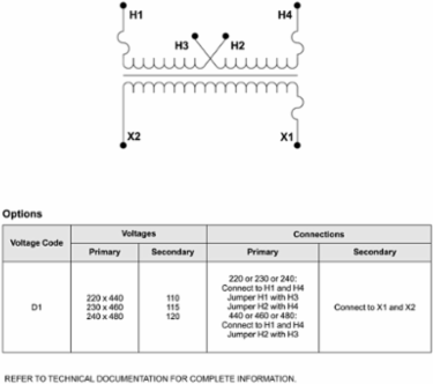

- Primary Voltage
- 240 x 480 V 120 V, 230 x 460 V 115 V, 220 x 440 V 110 V
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Insulation Temperature
- 105 °C
- Phase
- 1 phase
- Product Or Component Type
- Industrial Control Transformer
- Returnability
- Yes
- Temperature Rise
- 55 °C
- Height Nominal
- 4.5 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Certificate AgencyCSA file LR37055 guide 184-N-90, UL listed file E61239
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeTransformer - dry
TraceabilityNo
Average Life Duration25 year(s)
Weee Product Category4
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Electrical Connectionscrew clamp terminals
Fuse Type0.41 x 1.50 in CC top
Materialcopper: winding
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductTF
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal3.75 in
Package Weight(Lbs)3.039 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- FSC1
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- TF
Product Or Component TypeIndustrial Control Transformer
ETIM
- ETIM 8
- EC002486
ETIM 9EC002486
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
