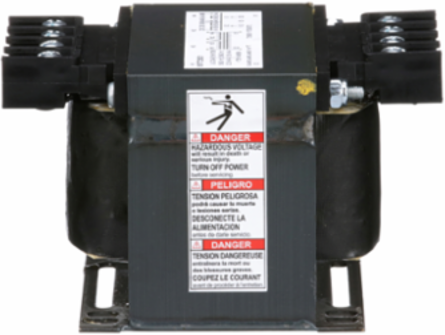

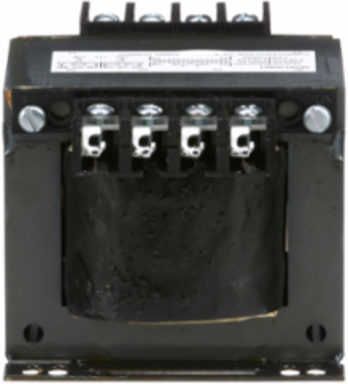

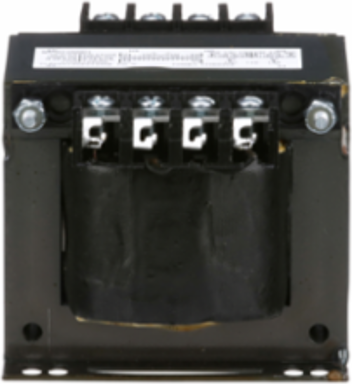

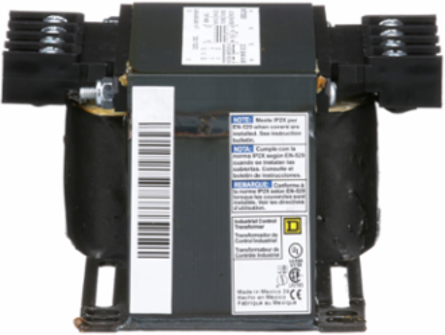

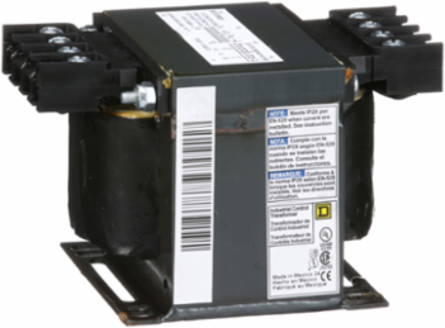

Square D 9070T250D1 Type T Industrial Control Transformer 250VA 1 Phase 240x480V Primary 120V Secondary
- MPN: 9070T250D1
- UPC: 785901904670
- PPN: SCH-9070T250D1
CAD
$188.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type T is a single phase 250VA transformer designed for 240x480VAC primary with a 120VAC secondary. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark.
Features
- Engineered with highly adaptable primary-to-secondary configurations, this Square D by Schneider Electric Type T transformer seamlessly converts 240x480V down to 120V, 230x460V down to 115V, or 220x440V down to 110V AC. This broad voltage matrix ensures panel builders can stock a single component to interface with varying multi-phase plant electrical supplies across North America.
- Designed with ultra-low impedance copper windings, this 250 VA single-phase control transformer effortlessly handles the brief, severe high-inrush currents demanded by large contactors, starters, solenoids, and relays. By preventing extreme voltage drops on startup, it ensures critical PLC electronics and automated controls do not drop out or suffer erratic control faults.
- Utilizing a premium Class 130 (°C) insulation system coupled with a conservative 80°C temperature rise rating, this rugged industrial component prevents thermal degradation during continuous duty cycle operations. The open-device design maximizes passive convective airflow, increasing the overall operational lifespan of the core and coils in high-ambient industrial
- Equipped with heavy-duty screw clamp terminals, this transformer delivers high-torque, vibration-resistant terminations that accept standard field wiring without loose contact risk. For facilities demanding advanced touch-safety compliance or added circuit protection, the integrated terminal block natively accommodates snap-on Square D FSC2 Fingersafe terminal covers, field-installable fuse blocks, or secondary fuse clips.
- Featuring a compact chassis layout measuring 3.2" H x 3.75" W x 5.3" D and weighing 7.9 lbs, this open-style transformer drops easily into existing equipment footprints. The universal slotted base mounting pattern accommodates direct panel-mounting or backplate bolt-down, eliminating the need for custom fabrication or drilling when replacing older legacy models.
- Built to meet rigorous North American and international safety benchmarks, the 9070T250D1 is UL Listed, CSA Certified, NOM approved, and self-certified to EN standards with a prominent CE mark. This comprehensive regulatory status ensures hassle-free industrial code approval and simplifies compliance documentation for machine tool OEMs exporting systems globally.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
Complementary
- Height
- 3.2 in
- Material
- copper: winding
- Rated Power In Va
- 250 VA UL || 250 VA CSA || 250 VA NOM || 160 VA CE
- Depth
- 5.3 in
- Primary Voltage
- 240 x 480 V 120 V || 230 x 460 V 115 V || 220 x 440 V 110 V
Temperature Rise80 °C
Electrical Connectionscrew clamp terminals
Width3.75 in
Product CompatibilityFSC2
Network Number Of Phases1 phase
Environment
- Product Certifications
- CSA file LR37055 guide 184-N-90 || UL listed file E61239
- Insulation Temperature
- 130 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
