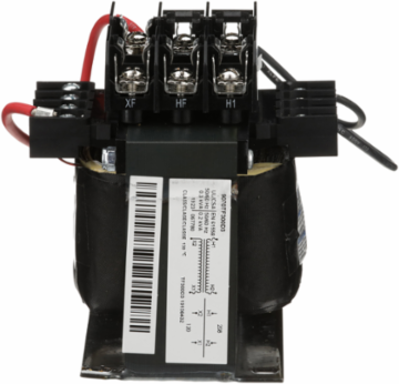

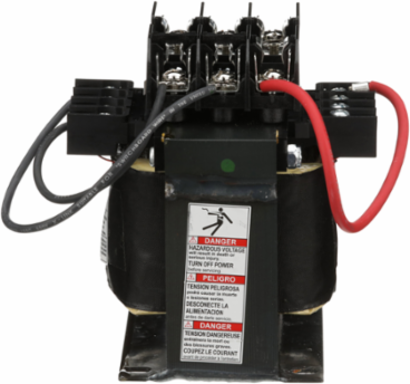

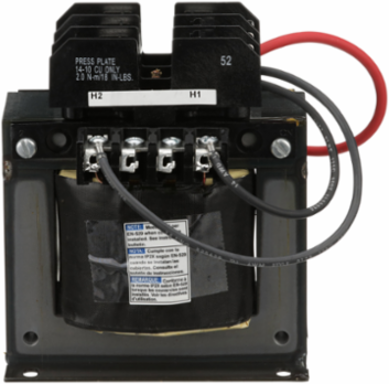

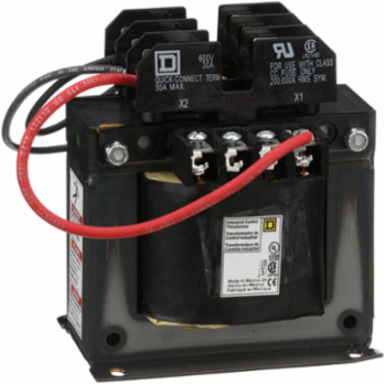

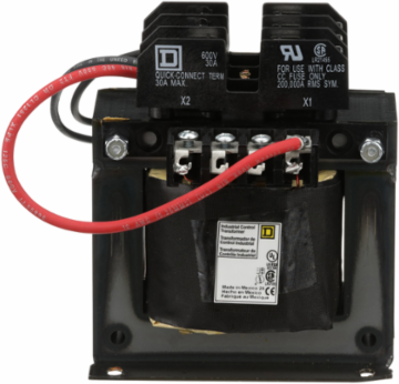

Square D 9070TF300D3 Type TF Industrial Control Transformer 300VA 1 Phase 208V/120V 80C Rise
Square D 9070TF300D3 Type TF Industrial Control Transformer 300VA 1 Phase 208V/120V 80C Rise
- MPN: 9070TF300D3
- UPC: 785901907190
- PPN: SCH-9070TF300D3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$230.48/ EA
Description
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 300VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 80 °C. Dimensions for this product are 5.73 in (H), 5.25 in (W), 6.04 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
Specifications
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 130 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 5.13 in
- Temperature Rise
- 80 °C
- Electrical Connection
- screw clamp terminals
- Width
- 4.5 in
- Product Compatibility
- FSC2
- Network Number Of Phases
- 1 phase
Fuse Type0.41 x 1.50 in CC top
Materialcopper: winding
Rated Power In Va300 VA UL || 300 VA CSA || 300 VA NOM || 200 VA CE
Depth4.74 in
Primary Voltage208 V 120 V
Specifications
- Range Of Product
- TF
Product Or Component TypeIndustrial Control Transformer
