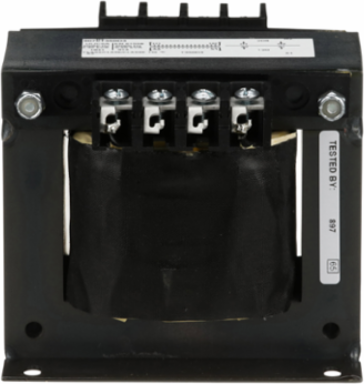

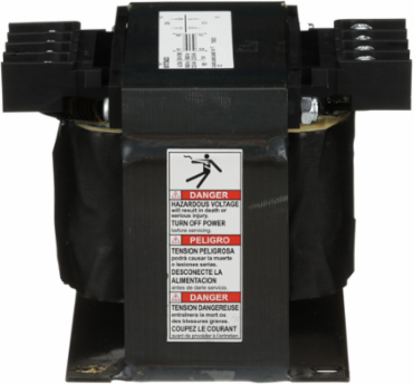

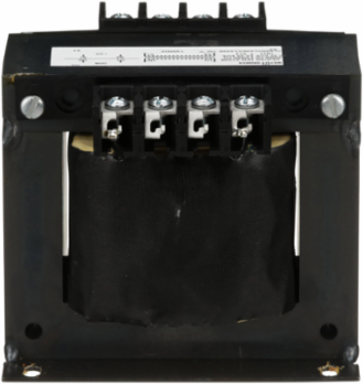

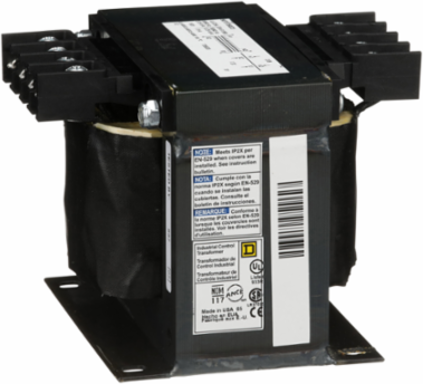

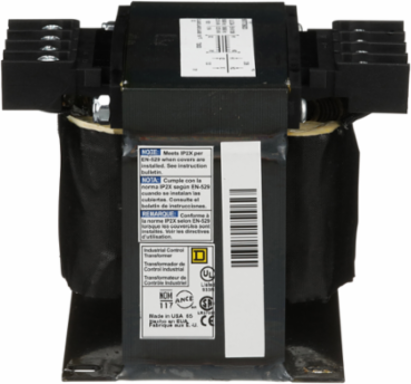

Square D 9070T350D3 Type T Industrial Control Transformer, 350VA, 1 Phase, 208V/120V, 80°C Rise
Square D 9070T350D3 Type T Industrial Control Transformer, 350VA, 1 Phase, 208V/120V, 80°C Rise
- MPN: 9070T350D3
- UPC: 785901322283
- PPN: SCH-9070T350D3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$203.63/ EA
Description
Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 350VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 80 °C. Dimensions for this product are 3.84 in (H), 4.5 in (W), 5.11 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
Specifications
Environment
- Product Certifications
- CSA file LR37055 guide 184-N-90 || UL listed file E61239
- Insulation Temperature
- 130 °C
Nema Degree Of Protectionnot rated (open device)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 3.84 in
- Material
- copper: winding
- Rated Power In Va
- 350 VA UL || 350 VA CSA || 350 VA NOM || 250 VA CE
- Depth
- 5.11 in
- Primary Voltage
- 208 V 120 V
Temperature Rise80 °C
Electrical Connectionscrew clamp terminals
Width4.5 in
Product CompatibilityFSC2
Network Number Of Phases1 phase
Specifications
- Range Of Product
- T
Product Or Component TypeIndustrial Control Transformer
