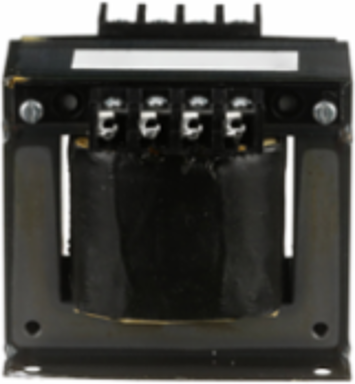

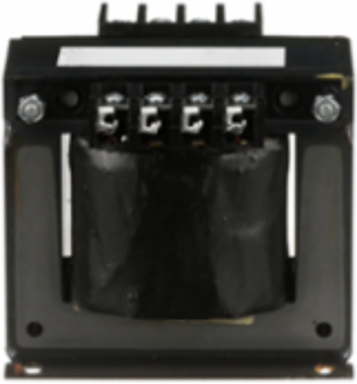

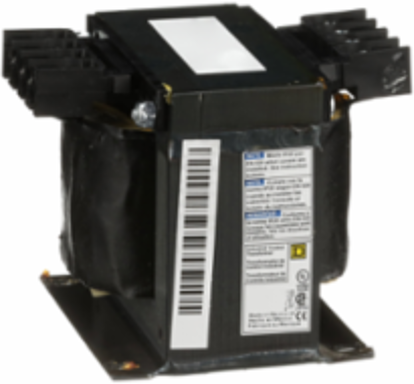

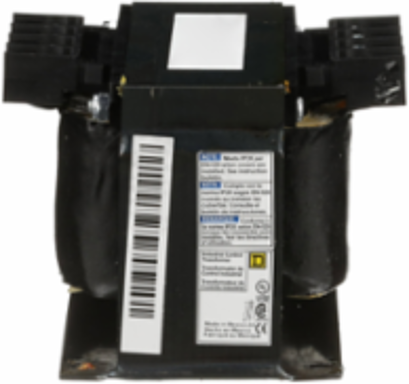

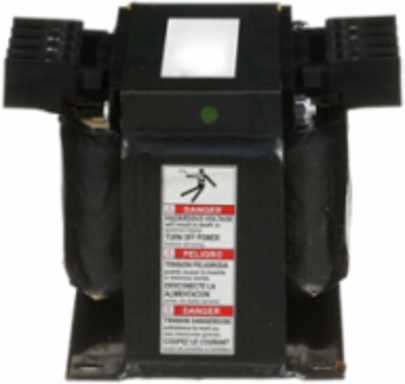

Square D 9070T350D37 Type T Industrial Control Transformer, 350 VA, 1 Phase, 550/575/600V Primary, 120/240V Secondary, 80°C Rise
- MPN: 9070T350D37
- UPC: 785901689188
- PPN: SCH-9070T350D37
CAD
$212.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric presents the Type T Industrial Control Transformer, a robust solution designed for high-efficiency power distribution in various industrial applications. With a primary voltage capacity of 550, 575, or 600 volts and a secondary output of 120 or 240 volts, this transformer expertly accommodates the demands of modern control systems. Operating with a rise of 80°C, it ensures reliable performance under challenging conditions, making it an essential component for those needing dependable power solutions in their installations. Its design emphasizes durability and efficiency, perfectly suited for the rigors of industrial environments.
Features
- Engineered precisely for industrial electrical infrastructure, this control transformer accepts high-voltage primary inputs of 550V, 575V, or 600V AC and steps them down to a usable single-phase 120V or 240V AC secondary output. This ensures you can seamlessly power standard control circuits, contactors, and relays directly off your main 600V facility line without needing separate utility drops.
- Featuring a robust 350 VA power rating (250 VA CE certified) built with high-quality copper windings, the Square D Type T design provides excellent voltage regulation under momentary overloads. This prevents control components from chattering or failing to drop in during high-inrush motor starting sequences, minimizing operational downtime.
- Built with a 130°C (266°F) insulation class and a conservative 80°C temperature rise rating, this open-type device manages thermal loads exceptionally well. It limits heat dissipation inside your control panels, preventing localized hot spots and protecting neighboring sensitive automation electronics from premature heat degradation.
- Equipped with heavy-duty integrated screw clamp terminals, the unit allows for fast, low-resistance field wiring terminations that resist vibration loosening over time. For industrial environments demanding enhanced field safety compliance, it is fully compatible with Schneider FSC2 finger-safe terminal covers and field-installable 9070FB3B fuse blocks to streamline your safety audits.
- Designed for trouble-free safety approval and plant inspections, this industrial transformer carries comprehensive UL Listed, cUL, CSA, CE, and NOM certifications.
Documentation & Downloads
Specifications
Additional
- Rated Power
- 350 VA UL, CSA, NOM; 250 VA CE
- Primary Voltage
- 550/575/600 V 110/115/120/220/230/240 V
- Temperature Rise
- 80 °C
- Electrical Connection
- Screw clamp terminals
- Width
- 4.5 in (114.30 mm)
- Product Type
- Industrial Control Transformer
- Enclosure Type
- Not rated (open device)
- Certifications
- UL Listed, CSA
- PVC Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Warranty
- 18 months
Number of Phases1 phase
Secondary Voltage120/240 V
Insulation Temperature130 °C (266 °F)
Height3.84 in (97.54 mm)
Depth5.11 in (129.79 mm)
Product RangeT
Product CompatibilityFSC2
Mercury FreeYes
EU RoHS DirectiveCompliant with Exemptions
Country of OriginUS
