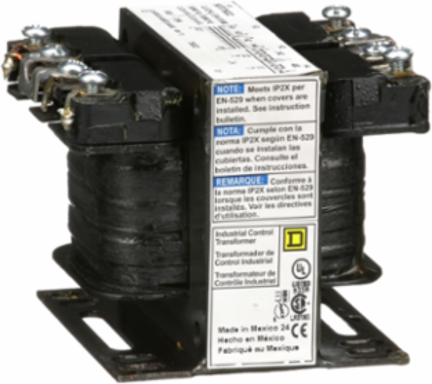

Square D 9070T50D2 50VA Industrial Control Transformer, 240x480V Primary, 24V Secondary, 1 Phase, 55C Rise
- MPN: 9070T50D2
- UPC: 785901904939
- PPN: SCH-9070T50D2
CAD
$78.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 50VA and is 1 phase. This transformer has a 240 x 480V primary voltage and 24V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.
Features
- The Schneider Electric 9070T50D2 is a 50VA Type T transformer engineered with a space-saving footprint to maximize "real estate" within your electrical enclosure. This high-density design allows industrial engineers to downsize their control cabinets without sacrificing the thermal stability required for reliable relay and motor starter operation.
- Featuring a versatile dual-voltage primary (240/480V) and a 24V secondary, this unit acts as a universal solution for stepping down high-line voltage to safe control power. This flexibility simplifies your inventory management, as one part number can satisfy multiple machine configurations across your facility.
- Built with high-quality silicon steel laminations and Class 105°C insulation, this transformer minimizes core losses and heat dissipation. This superior thermal management prevents "nuisance tripping" of downstream breakers and ensures that sensitive control components like PLCs and sensors receive consistent, stable voltage even during heavy inductive load inrush.
- Equipped with heavy-duty molded-in terminals and slotted Phillips head screws, the 9070T50D2 provides a vibration-resistant connection point that prevents loosening over time. This robust termination design reduces the risk of intermittent power failures, which is critical for maintaining uptime in stamping, CNC, or conveyor applications.
Documentation & Downloads
Specifications
Additional
- Power Rating
- 50 VA UL, CSA, NOM, CE
- Primary Voltage
- 240 x 480 V
- Temperature Rise
- 55 C
- Width
- 3 in
- Material
- Copper winding
- Electrical Connection
- Screw clamp terminals
- RoHS Exemption
- Yes
- Mercury Free
- Yes
- Country of Origin
- Mexico
Number of Phases1 phase
Secondary Voltage24 V
Height2.58 in
Depth3.09 in
Insulation Temperature105 C
NEMA Degree Of ProtectionNot rated (open device)
PVC FreeYes
ComplianceUL Listed, CSA Certified, CE Certified
Warranty18 months
